Echoport 292

Advanced clinical binaural OAEs

POWERFUL ANALYSIS
Clinical level
DPOAE, TEOAE, SOAE

FULLY CUSTOMIZABLE
4 Protocols
Up to 14 parameters

FREQUENCY RANGE
DPOAE 0.8 to 10.5kHz
TEOAE 1 to 6kHz
PASS SNR 1 to 14dB per 1/2 octave (∆1dB)

Download brochure

Echoport 292

Clinical OAE Analysis

  • Examine/compare feature for DP-DP, TE-DP and TE-TE
  • Full cross correlation, frequency analysis with reproducibility and signal-to-noise data on single test or between test pairs
  • Full spectrum display during DP test shows higher order DPs
  • Waveform analysis with response subtraction
  • Detailed TEOAE spectrum analysis (50Hz resolution).
  • Half-octave OAE power assessment
  • Full numerical OAE data table provided

APPLICATION

APPLICATION

Echoport 292 I

Echoport 292 I

Echoport 292 I

The powerful Echoport 292-I satisfies the most demanding of clinical needs. Providing a range of Gold Standard clinical OAE tests TEOAE, DPOAE, SOAE, DP Growth.

Echoport 292 II

Echoport 292 II

Echoport 292 II

The Echoport 292 II dual probe delivers all the power of the Echoport 292 I and adds bilateral TE&DP recording plus Contralateral Suppression

DPOAE RECORDING

DPOAE RECORDING

DPOAE RECORDING

  • High resolution DPgram up to 8 points per octave (27 frequencies shown)
  • Preset and customisable stimuli
  • Programmable L1 and L2 level, frequency ratio, points/octave, frequency range, manual/automatic/intelligent frequency progression
  • Total DP power assessment
  • DP I/O growth rate analysis, dB/dB or scissor optimized stimuli
  • Simultaneous binaural recording (ILO292-II only)
  • True time domain averaging and noise statistics
  • Ultra secure SNR assessment
  • Total DP power assessment

TEOAE RECORDING

TEOAE RECORDING

TEOAE RECORDING

  • TEQuick Screen,non-linear, linear, tone pip and Standard ‘ILO’ (20ms) diagnostic recording
  • Click stimulus or configurable tone pulse
  • Configurable stimulus intensity. In-the-ear calibration
  • Real-time stimulus and probe fit monitoring
  • ‘ILO’ analysis giving OAE dBSPL and reproducibility in half-octave bands plus stimulus and response waveforms
  • Simultaneous binaural recording (ILO292-II only)

ILOv6 Advanced Data Management and Analysis Software

ILOv6 Advanced Data Management and Analysis Software

ILOv6 Advanced Data Management and Analysis Software

  • Fully searchable patient database with printable reports
  • ILO standard DTA and DPG files
  • Exportable data to OZ, Hi*Track, XML, ILOV5, Excel and ASCII (user selectable data elements)
  • Import of data from other V6, Otolink or Ez-screen sites
  • Integration of data from multiple sites, testers and machines
  • Ability to run from a network and with a network database

ECHOPORT DESIGN

ECHOPORT DESIGN

ECHOPORT DESIGN

  • Robust, compact format
  • USB plug-n-play connection to PC
  • Lightweight and battery-free (powered by USB connection)
  • Windows 10, 8 and 7 compatible

3 YEAR STANDARD WARRANTY:Included

3 YEAR STANDARD WARRANTY:Included

3 YEAR STANDARD WARRANTY:Included

3 year instrument warranty is provided with all Echoports. Additional warranty is available if required ask for details

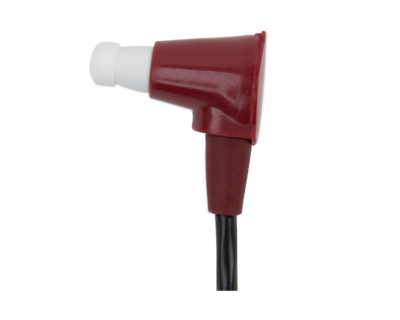

EASY FIT PROBE DESIGN

EASY FIT PROBE DESIGN

EASY FIT PROBE DESIGN

Otodynamics was the first with a right angled probe, designed to be small, light weight and easy to fit to help achieve a good probe fit. Find out about longer probe life

Testimonials

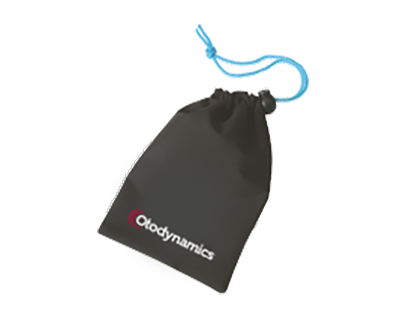

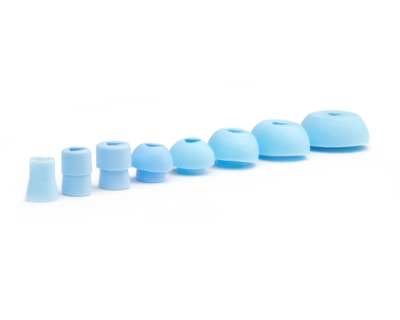

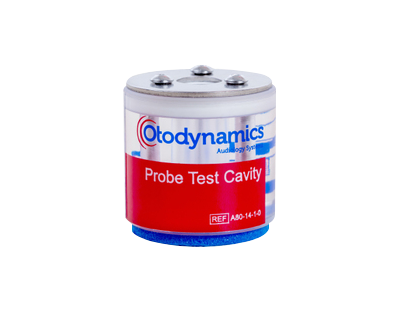

Accessories Included

Specification Table

SPEC DPOAE TEOAE
TEST CONFIGURABILITY 4 Protocols, 14 Parameters 4 Protocols, 10 Parameters
FREQ. RANGE (kHz) 0.8 to 10.5 kHz 1 to 6 kHz, 100 pts
FREQ. RESOLUTION 1,2,3,4,8 pts/octave 50Hz, 80Hz or 1/2 octave
FREQ. RATIO 1.04 to 1.5 (Δ0.02) -
STIMULUS LEVELS 40 to 80 (Δ1dB)(dBSPL) 40 to 90 (Δ1db) (dBSPLpe)
PASS CRITERIA 10 Parameters 10 Parameters
PASS SNR 1 to 14dB per 1/2 octave (Δ1dB) 1 to 14dB per 1/2 octave (Δ1dB)
CPT CODES 92588, 92587, 92558 92587, 92558
