Echoport

Clinical OAE Analysis

• Examine/compare feature for DP-DP, TE-DP and TE-TE
• Full cross correlation, frequency analysis with reproducibility and signal-to-noise data on single test or between test pairs
• Full spectrum display during DP test shows higher order DPs
• Waveform analysis with response subtraction
• Detailed TEOAE spectrum analysis (50Hz resolution).
• Half-octave OAE power assessment
• Full numerical OAE data table provided

Echoport 292 I

The powerful Echoport 292-I satisfies the most demanding of clinical needs. Providing a range of Gold Standard clinical OAE tests TEOAE, DPOAE, SOAE, DP Growth.

Echoport 292 II

The Echoport 292 II dual probe delivers all the power of the Echoport 292 I and adds bilateral TE&DP recording plus Contralateral Suppression

DPOAE RECORDING

• High resolution DPgram up to 8 points per octave (27 frequencies shown)
• Preset and customisable stimuli
• Programmable L1 and L2 level, frequency ratio, points/octave, frequency range, manual/automatic/intelligent frequency progression
• Total DP power assessment
• DP I/O growth rate analysis, dB/dB or scissor optimized stimuli
• Simultaneous binaural recording (ILO292-II only)
• True time domain averaging and noise statistics
• Ultra secure SNR assessment
• Total DP power assessment

TEOAE RECORDING

• TEQuick Screen,non-linear, linear, tone pip and Standard ‘ILO’ (20ms) diagnostic recording
• Click stimulus or configurable tone pulse
• Configurable stimulus intensity. In-the-ear calibration
• Real-time stimulus and probe fit monitoring
• ‘ILO’ analysis giving OAE dBSPL and reproducibility in half-octave bands plus stimulus and response waveforms
• Simultaneous binaural recording (ILO292-II only)

ILOv6 Advanced Data Management and Analysis Software

• Fully searchable patient database with printable reports
• ILO standard DTA and DPG files
• Exportable data to OZ, Hi*Track, XML, ILOV5, Excel and ASCII (user selectable data elements)
• Import of data from other V6, Otolink or Ez-screen sites
• Integration of data from multiple sites, testers and machines
• Ability to run from a network and with a network database

ECHOPORT DESIGN

• Robust, compact format

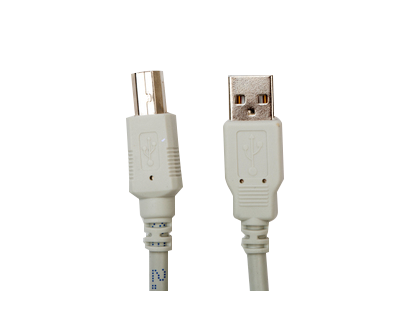

• USB plug-n-play connection to PC
• Lightweight and battery-free (powered by USB connection)
• Windows 10, 8 and 7 compatible

3 YEAR STANDARD WARRANTY:Included

3 year instrument warranty is provided with all Echoports. Additional warranty is available if required ask for details

EASY FIT PROBE DESIGN

Otodynamics was the first with a right angled probe, designed to be small, light weight and easy to fit to help achieve a good probe fit. Find out about longer probe life
