Otodynamics Otoport Flexi - Exactly What’s Needed For Clinical OAEs

Exactly What’s Needed For Clinical OAEs

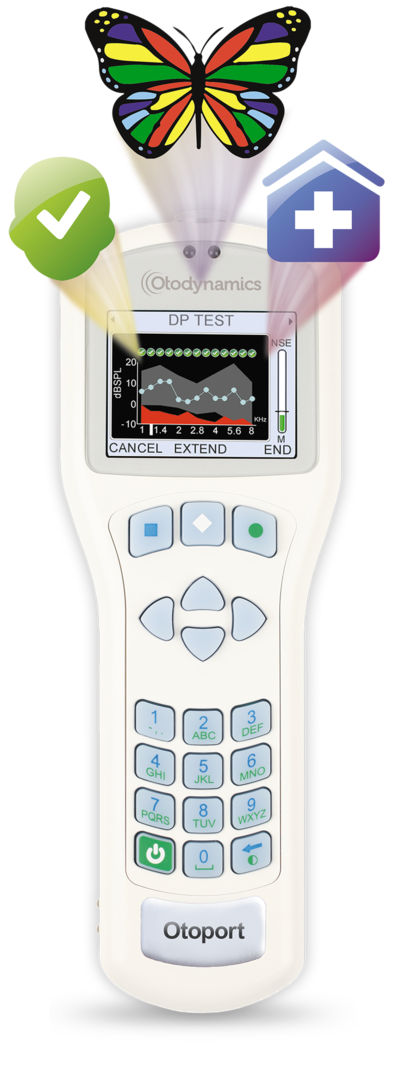

Designed for the clinic and screening applications, the Otoport Flexi handheld OAE instrument can meet your needs. It’s easy to switch between analytical clinical modes and screening modes. Providing 6 DPOAE protocols and 2 TEOAE protocols. Configurable noise management and rejection, Individual band pass indications and Selectable automated DP frequency sweep management.

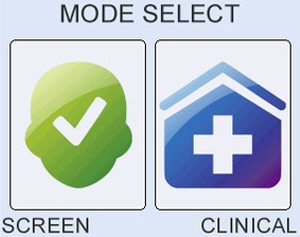

Easy-to-use one key screening or clinical setup

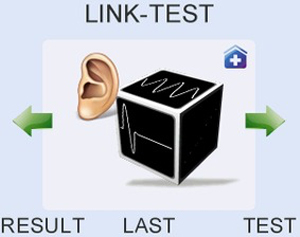

Link test macro function - build a protocol giving a sequence of DP and/or TE tests

In-ear calibration ensuring accurate results

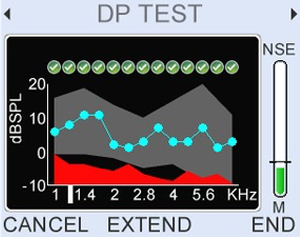

High quality 12 frequency line DPgrams or higher resolution with normative range markers from 1-8kHz up to 4pts/octave and or higher resolution

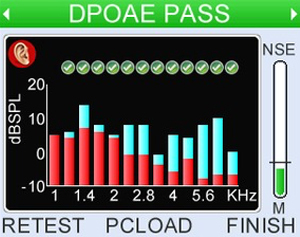

High quality 12 frequency bar DPgrams or higher resolution with normative range markers from 1-8kHz up to 4pts/octave and or higher resolution

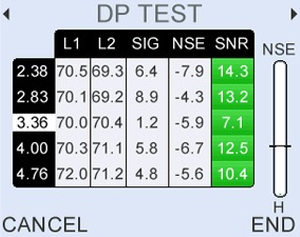

Numerical table of signal, noise and SNR

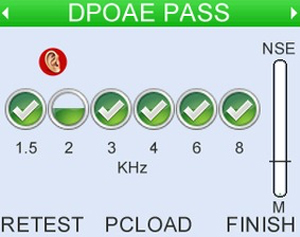

Any 2, 3, 4 or 5 bands configurable DP pass criteria

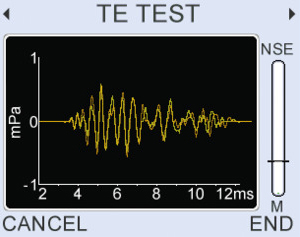

Live TEOAE waveform

Sensitive TEOAEs 1-4kHz

Configurable as a simple-to-use automated screener for hearing screening applications

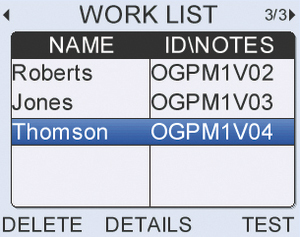

Worklist and downloadable secure database. Login access if required

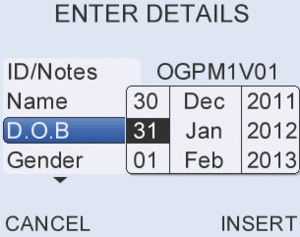

Extensive patient database fields Enter Full Patient demographic data as needed

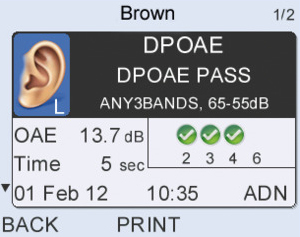

Searchable 500 tests storage listed in chronological order with onscreen test result summary table

Extensive protocol control with login and administrator functions

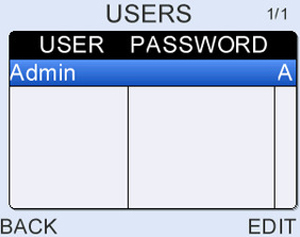

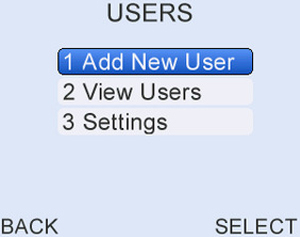

Create multiple user logins with password protection with Admin control if required

CLINICAL AUDIOLOGY

Otoport Flexi provides high quality 12 frequency DPgrams with settable normative range markers from 1-8kHz. Tests are highly configurable. You can preconfigure two clinical DPOAE modes which are easily accessible. Select the stimulus level from 6 L1, L2 combinations and choose the analysis display as half octave or DPgram. Complete your clinical OAE examination TEOAEs displayed as a waveform or ½ octave analysis, 1-4kHz. There are two preconfigurable TEOAE clinical modes.

PAEDIATRIC ASSESSMENT

The Otoport Flexi paediatric screening mode is fast and highly effective with children, alerting you to the possibility of both conductive and cochlear losses. With visual distraction displays, one of 3 cartoons will engage the child to encourage quietness. The cartoon gradually fills with colour if the child is quiet but colours fade when the child is noisy.

NEWBORN SCREENING

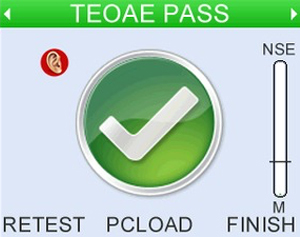

The Otoport Flexi is also an ideal newborn screener whatever your preferred screening method. It includes 2 TEOAE Quickscreen and 2 DPOAE pre-configurable screening modes. Automated start for speed with clear pass/refer indications based on configurable pass criteria.

PAEDIATRIC DISPLAY: Included

Highly effective with children the visual distraction displays provides 3 animations, engaging the child, helping keep them quiet. The animation gradually fills with colour if the child is quiet but colour fades when child is noisy.

OTOLINK SUITE: Included

Manage your data easily and efficiently with the Otolink PC patient data management suite. Download test results wirelessly* or via USB from the Otoport or when docked in the docking station**. Test details can be quickly reviewed, printed and archived. Printing reports directly to PDF file is available. Data can be exported, for example, to Oz, Hi Track, GDT, Noah*** or as CSV file. Patient work lists can be uploaded to the Otoport, assisting with managing workloads in busy environments. Otolink also provides access to firmware and application updates from Otodynamics via the internet.
Compatible with Windows 10, 8 and 7.

With wireless connection option ** With docking station option *** With Noah option

LANGUAGE OPTION

Set the language you require through the Otoports configuration menu

English
French
German
Hungarian
Italian

Polish
Portuguese
Spanish
Turkish

OTOPORT DESIGN

Light weight and portable with easy-to-use keypad
Automated self-test system when powering on Otoport
Intuitive test progress graphic displaying signal to noise progress
Long battery life - up to 250 test cycles or one full working week

On screen notification of poor probe fit, high noise level and ringing stimulus
Each test is saved with the actual physiological response

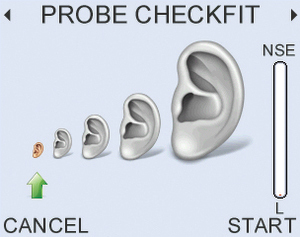

Comprehensive probe fit and noise level indicators
On board Probe test facility and Probe ID tracking

EASY FIT PROBE DESIGN

Otodynamics was the first with a right angled probe, designed to be small, light weight and easy to fit to help achieve a good probe fit. Find out about longer probe life

2 YEAR WARRANTY: Included

2 year instrument warranty is provided with all Otoports. Additional warranty is available if required ask for details
