Otoport Advance

Advanced clinical OAEs

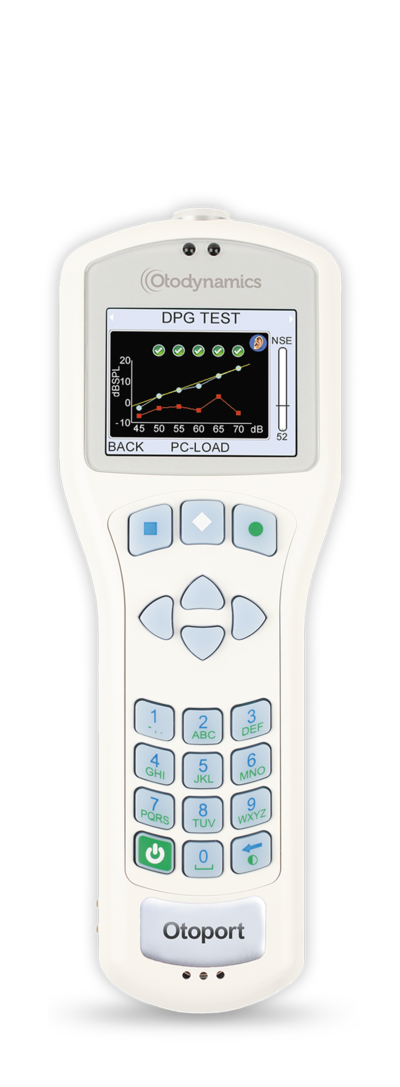

The Otoport Advance is the top of the range Otoport, an enhanced clinical handheld instrument, providing detailed test information enabling in-depth analysis of results on the instrument or on PC using the ILOV6 software supplied. Configurable settings facilitate traceable protocols. Programmable test ‘macros’ allow automated monitoring of OAEs over time with your choice of DPOAE and TEOAE tests at multiple levels

High quality 13 frequency DPgrams with settable normative range markers High quality 13 frequency DPgrams with settable normative range markers

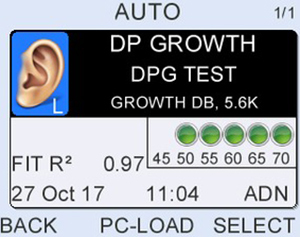

DP growth I/O function analysis, dB/dB and scissor modes. Intelligent or manual test progress management for fast testing DP growth I/O function analysis, dB/dB and scissor modes. Intelligent or manual test progress management for fast testing

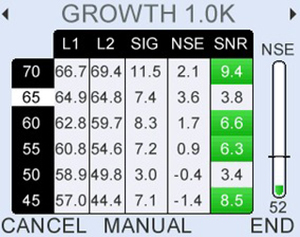

Detailed numerical data available with each test result. Stimulus, response noise levels plus signal to noise ration SNR Detailed numerical data available with each test result. Stimulus, response noise levels plus signal to noise ration SNR

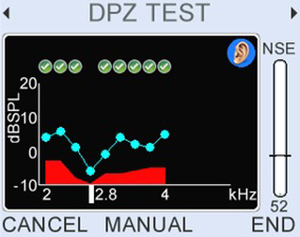

DP zoom focuses on a specific range of frequencies in high resolution (up to 16 pts/oct) to explore details DP zoom focuses on a specific range of frequencies in high resolution (up to 16 pts/oct) to explore details

Comprehensive TEOAE analysis. , high resolution spectrum Comprehensive TEOAE analysis. , high resolution spectrum

View TEOAE waveform View TEOAE waveform

View TEOAE signal and noise histogram View TEOAE signal and noise histogram

View TEOAE numerical data View TEOAE numerical data

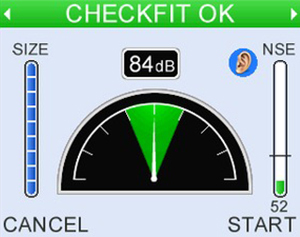

In-Ear Calibration ensuring accurate results In-Ear Calibration ensuring accurate results

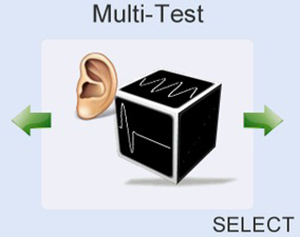

Multi Test macro function- build a protocol giving a sequence of DP and/or TE tests Multi Test macro function- build a protocol giving a sequence of DP and/or TE tests

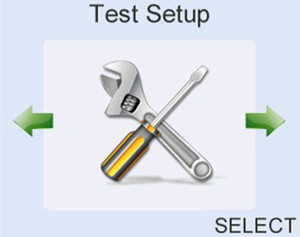

Comprehensive test parameter and protocol configuration facilities Comprehensive test parameter and protocol configuration facilities

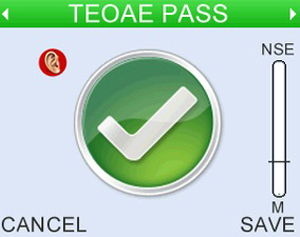

Configurable as a simple-to-use TEOAE automated screener for hearing screening applications Configurable as a simple-to-use TEOAE automated screener for hearing screening applications

Configurable as a simple-to-use DPAOE automated screener for hearing screening applications Configurable as a simple-to-use DPAOE automated screener for hearing screening applications

Programmable Worklist and downloadable secure database. Login access if required Programmable Worklist and downloadable secure database. Login access if required

Searchable1000 tests storage listed in chronological order with on-screen test result summary table. Detailed demographic data Searchable1000 tests storage listed in chronological order with on-screen test result summary table. Detailed demographic data

Extensive patient database fields Enter Full Patient demographic data as needed Extensive patient database fields Enter Full Patient demographic data as needed

Dedicated QA test area & history view. On board Probe test facility and Probe ID tracking Dedicated QA test area & history view. On board Probe test facility and Probe ID tracking

Extensive protocol control with login and administrator functions Extensive protocol control with login and administrator functions

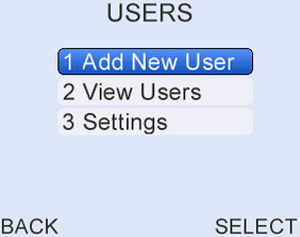

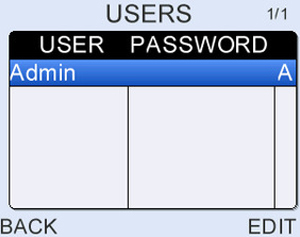

Create multiple user logins with password protection with Admin control if required Create multiple user logins with password protection with Admin control if required

Long battery life - up to 250 test cycles or one full working week Long battery life - up to 250 test cycles or one full working week

APPLICATION

Pedatric Display:Included

Pedatric Display:Included

Pedatric Display:Included

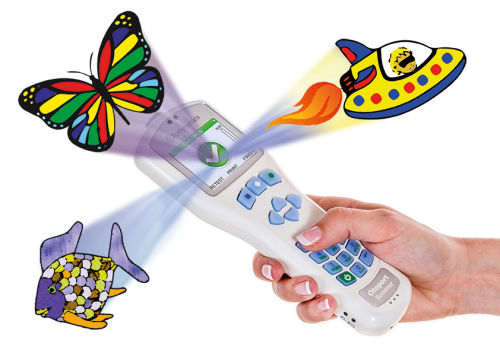

Highly effective with children the visual distraction displays provides 3 animations, engaging the child, helping keep them quiet. The animation gradually fills with color if the child is quiet but colors fade when child is noisy.

OTOLINK SUITE: Included

OTOLINK SUITE: Included

OTOLINK SUITE: Included

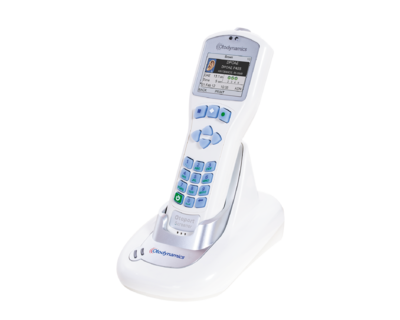

Manage your data easily and efficiently with the Otolink PC patient data management suite. Download test results wirelessly* or via USB from the Otoport or when docked in the docking station**. Test details can be quickly reviewed, printed and archived. Printing reports directly to PDF file is available. Data can be exported, for example, to Oz, Hi Track, GDT, Noah*** or as CSV file. Patient work lists can be uploaded to the Otoport, assisting with managing workloads in busy environments. Otolink also provides access to firmware and application updates from Otodynamics via the internet.
Compatible with Windows 10, 8 and 7.

With wireless connection option ** With docking station option *** With Noah option

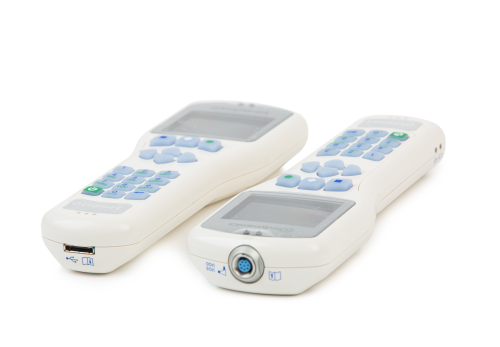

OTOPORT DESIGN

OTOPORT DESIGN

OTOPORT DESIGN

  • Light weight and portable with easy-to-use keypad
  • Automated self-test system when powering on Otoport
  • Intuitive test progress graphic displaying signal to noise progress
  • Long battery life - up to 250 test cycles or one full working week
  • On screen notification of poor probe fit, high noise level and ringing stimulus
  • Each test is saved with the actual physiological response
  • Comprehensive probe fit and noise level indicators
  • On board Probe test facility and Probe ID tracking

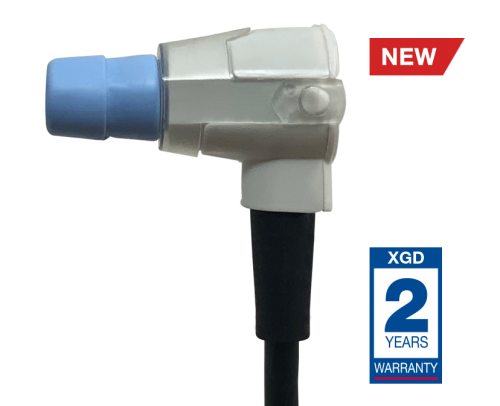

EASY FIT PROBE DESIGN

EASY FIT PROBE DESIGN

EASY FIT PROBE DESIGN

Otodynamics was the first with a right angled probe, designed to be small, light weight and easy to fit to help achieve a good probe fit. Find out about longer probe life

2 YEAR WARRANTY: Included

2 YEAR WARRANTY: Included

2 YEAR WARRANTY: Included

2 year instrument warranty is provided with all Otoports.  Additional warranty is available if required ask for details

Testimonials

Accessories Included

Specification Table

SPEC DPOAE TEOAE
TEST CONFIGURABILITY 7 Protocols, 16 Parameters 3 Protocols, 16 Parameters
FREQ. RANGE 1 to 8 kHz, 13 Frequencies 1, 1.5, 3, 4, 5, 6 kHz
FREQ. RESOLUTION Up to 16 pts/octave 80Hz or 1/2 Octave bandwidth
STIMULUS LEVELS (dBSPL) 40 to 75 (Δ5dB) 60 to 90 (Δ1db)
PASS CRITERIA 9 Parameters 7 Parameters
PASS SNR 1 to 14dB per band (Δ1dB) 1 to 14dB (Δ1dB)
CPT CODES 92588, 92587, 92558 92587, 92558
