Otocheck LE DP

Simple Pediatric & Newborn screener

RAPID
DPOAE Screening

PEDIATRIC FRIENDLY
Distraction animated display

FREQUENCY RANGE
2 to 6 kHz
Pass SNR 6dB Fixed

Download brochure

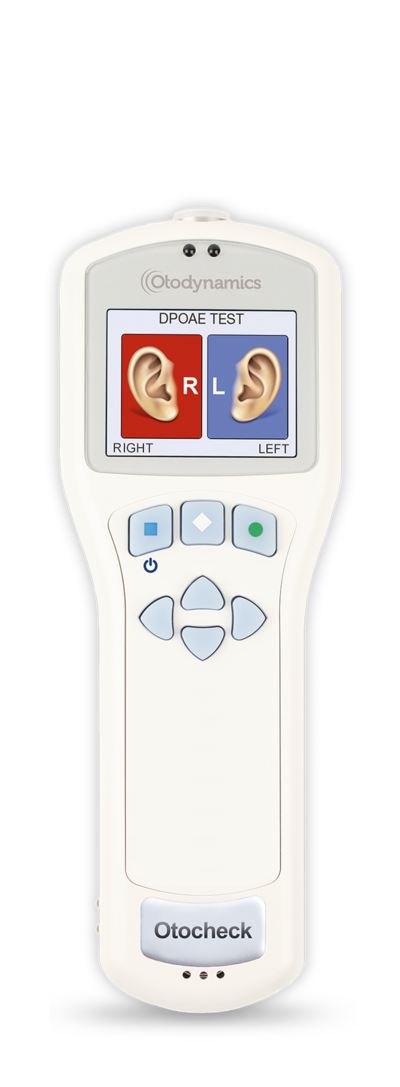

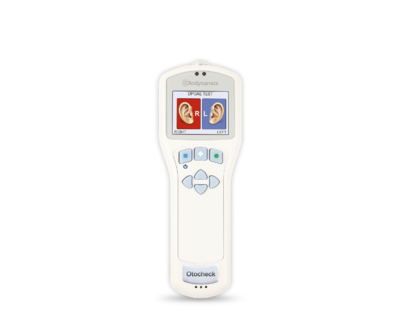

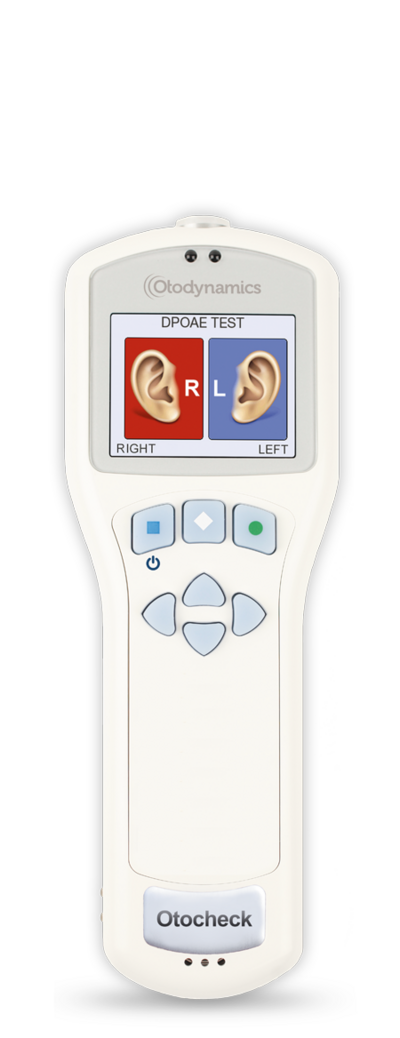

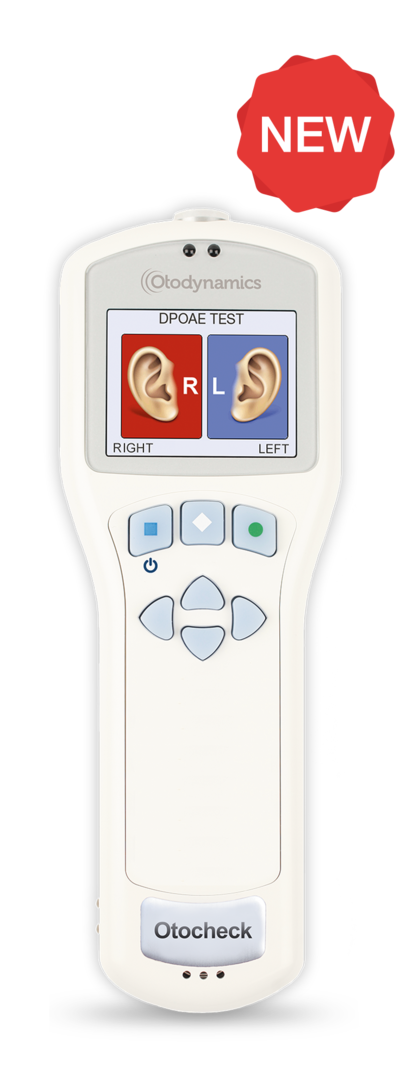

Otocheck LE DP

Simple Pediatric & Newborn screener

The Otocheck LE is an economical handheld OAE hearing screening instrument, designed for simplicity and applications that do not require electrical recording of patient details and results. With ‘one press and go function’, a result in seconds, minimal training required, its ready for any user. Added benefits of low cost consumables, long battery life and over 30years of OAE screening expertise easily make the Otocheck LE the most affordable and fastest solution for OAE screening.

  • Rapid DPOAE screening pass/refer result
  • Easy to use 1 key press and go operation
  • Minimal training required
  • SNR & Signal to noise histogram display
  • Pediatric distraction display with lock safe feature
  • Light weight and portable with easy-to-use keypad
  • Automated self-test system when powering on Otocheck
  • Long battery life - up to 250 test cycles or one full working week
  • Print wirelessly to the Otodynamics optional mini printer
  • Choice of language - English, French, Spanish, Portuguese, German, Italian

Application

Application

NEW XGD PROBE

NEW XGD PROBE

NEW XGD PROBE

The XGD probe is an enhanced replacement of the Otodynamics UGD and UGS probes, and offers advantages for both screening and clinical applications. viz easier and more economical maintenance, and enhanced acoustic performance.

Use of the XGD probe for testing is exactly the same as with our current UGD and UGS probes. The difference is only in the way it is maintained

• Easier Mainenance
• Low-cost Consumables
• Improved Performance
• Longer Probe Life
• Included with new Otoport/Otocheck instrument sales

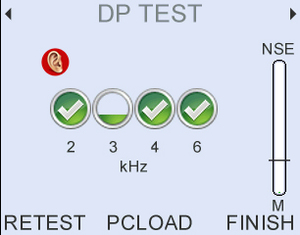

One Press & GO

One Press & GO

One Press & GO

Start a test with one press ear selection. Each test starts with automatic in ear calibration ensuring accurate results.

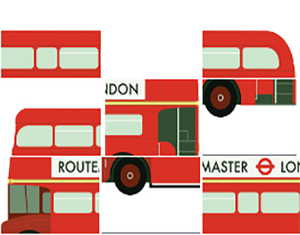

LE Pediatric Display

LE Pediatric Display

LE Pediatric Display

Highly effective with children, the visual distraction displays provide 6 animations, engaging the child, helping to keep them quiet. The animation gradually fills with color if the child is quiet but color fades when child is noisy.

Lock Safe

Lock Safe

Lock Safe

Engage more with your patient while testing. With one button push lock the device in pediatric display and allow the patient to hold the Otocheck LE while testing. The patient can navigate the 6 animations while testing without tampering with the instrument functions which further encourages the patient to be quiet and still through out the test.

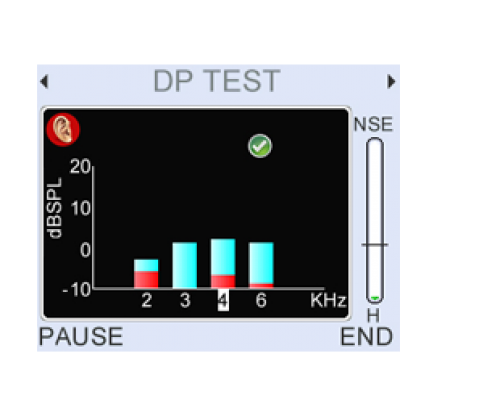

Choice In Test display

Choice In Test display

Choice In Test display

Aswell as a peditric displays, the Otocheck LE offers SNR test and Signal Noise histogram display

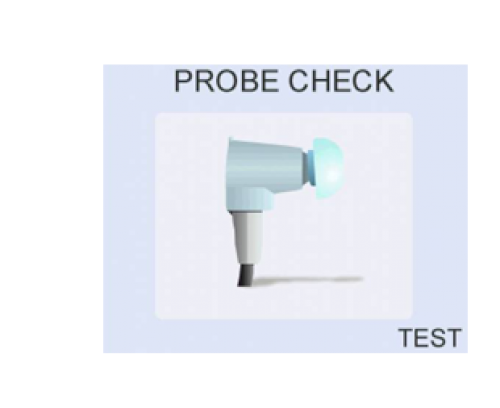

Probe Check

Probe Check

Probe Check

Easy access to the probe check area, 2 button presses, regular check your probe at the beginning of each day.  With helpful results table confirming your probe is good to go.

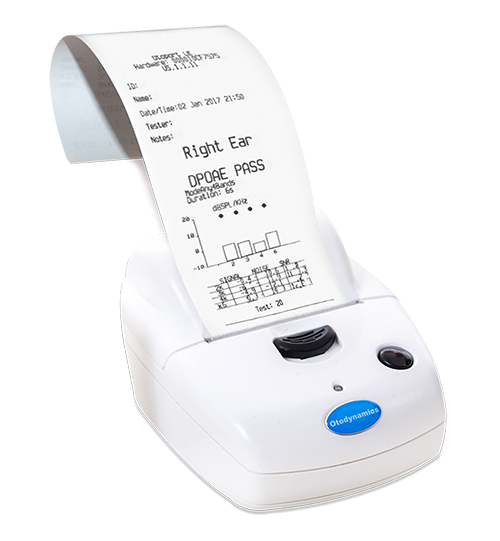

Printing Option

Printing Option

Printing Option

Print hard copy result fast, with the Otodynamics optional mini printer

2 YEAR WARRANTY: Included

2 YEAR WARRANTY: Included

2 YEAR WARRANTY: Included

2 year instrument warranty is provided with all Otoports.  Additional warranty is available if required ask for details

Testimonials

Accessories Included

Specification Table

SPEC DPOAE
Test Configurability 1 Protocol, 2 Parameters
Frequency Range 2, 3, 4, 6 kHz
Freq. Resolution 1/2 Octave
Stimulus Levels 60/50 to 70/70 (6 Presets) (dBSPL)
Pass Criteria 2, 3, 4 Bands
Pass SNR 6dB Fixed
CPT CODE 92587, 92558
