Otoport Pro SCREENER

FAST | EASY | CLEAR

















Download brochure

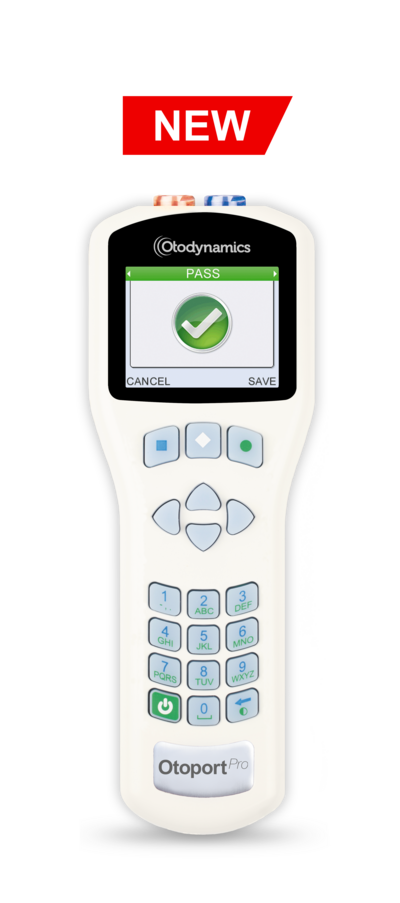

Otoport Pro SCREENER

The Otoport Pro Screener has been expertly designed to be flexible, simple, easy-to-use, and fast, while meeting all your screening needs from newborn screening through to pediatric assessments. Screeners are aided to identify problems by on-screen messages, to improve their techniques, and thereby improve overall performance of the program. Choose any one or a combination of DPOAE, TEOAE and AABR tests Upgrade later with a QR license activation. Each test type delivers reliability and performance with ultra fast, accurate and clear results.

Fast Results
OAE in as little as 7 seconds
AABR average pass in 80 seconds Fast Results OAE in as little as 7 seconds AABR average pass in 80 seconds

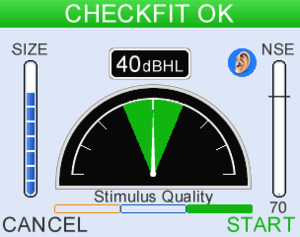

Every test starts with automated ‘in-the-ear’ calibration ensuring accurate results. Every test starts with automated ‘in-the-ear’ calibration ensuring accurate results.

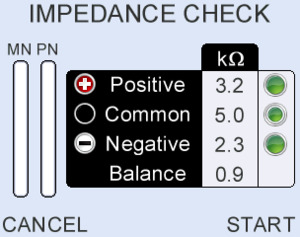

For AABRs, superior pre-test environment checks provides separate powerline & infant noise indicators and quickly identify if a specific electrode has high impedance. For AABRs, superior pre-test environment checks provides separate powerline & infant noise indicators and quickly identify if a specific electrode has high impedance.

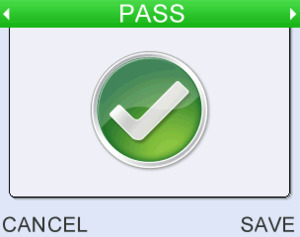

Store up to 2000 tests listed in chronological order with on-screen test result summary table. Store up to 2000 tests listed in chronological order with on-screen test result summary table.

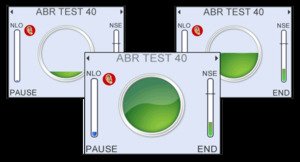

See test progress every step of the way.
For AABR there is continuous monitoring of Fsp and ABR waveform shape to ensure that a ‘clear response’ is a true response. See test progress every step of the way. For AABR there is continuous monitoring of Fsp and ABR waveform shape to ensure that a ‘clear response’ is a true response.

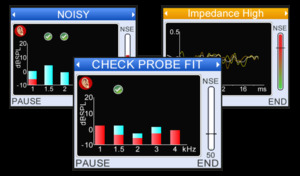

With automated monitoring of the testing environment. Helpful on-screen notification is provided advising of any issue impacting a test such as noise, probe or electrode fitment. With automated monitoring of the testing environment. Helpful on-screen notification is provided advising of any issue impacting a test such as noise, probe or electrode fitment.

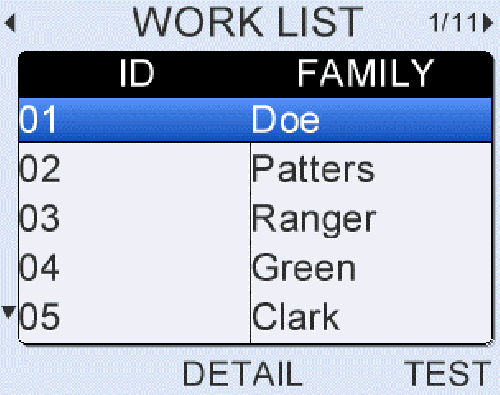

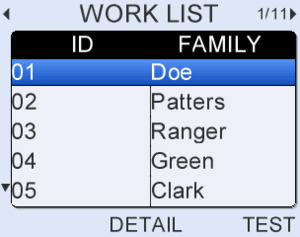

Use the programmable Work List
feature to plan your screening
workload. Use the programmable Work List feature to plan your screening workload.

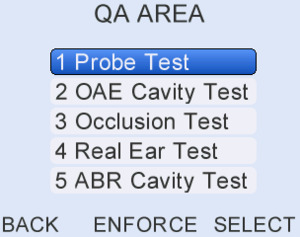

Dedicated QA test area with optional enforced daily QA. View QA history with on board Probe test facility and Probe ID tracking. Dedicated QA test area with optional enforced daily QA. View QA history with on board Probe test facility and Probe ID tracking.

Choose your test combination

Choose your test combination

Fast OAE Result

Fast OAE Result

Fast OAE Result

The Otoport Pro Screener is fast, easy and clear. With just 2 key presses**, achieve OAE response in as little as 7 seconds.

Watch video...

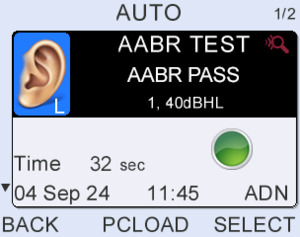

Fast AABR Result

Fast AABR Result

Fast AABR Result

The Otoport Pro Screener is fast, easy and clear. With just 2 key presses**, achieve an AABR pass on average in 80 seconds.

Watch video...

Pause Test control

Pause Test control

Pause Test control

Pause and resume testing at any time to address any issue impacting a test, such as noise, probe or electrode fitment.

Watch video...

Streamline Testing

Streamline Testing

Streamline Testing

Use the programmable Work List feature to plan your screening workload.

Watch video...

Unique Distraction Animation

Unique Distraction Animation

Unique Distraction Animation

When conducting challenging pediatric OAE assessments, the Otoport Pro has 6 visual distraction animations that helps to keep the child quiet and engaged. The child is encouraged to remain quiet as they watch the onscreen cartoon gradually filling with color. If noise is detected during the test, the colors quickly fade and return when the child settles creating positive reinforcement.

Watch video...

Otoport Pro Design

Otoport Pro Design

Otoport Pro Design

With the Otoport Pro you get multiple days of use between battery charges. Its robust design, large onboard searchable patient database and detailed response capture, means Otoport Pro can meet all your screening and or clinical program management needs.

Included: Wireless Connection

Included: Wireless Connection

Included: Wireless Connection

Transfer data wirelessly to the PC Otolink suite software or print wirelessly to the Otodynamics Mini printer.



“The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Otodynamics Ltd. is under license. Other trademarks and trade names are those of their respective owners.”

Probe XPD Connection

Probe XPD Connection

Probe XPD Connection

The XPD probe is designed for the Otodynamics Pro series with easy push pull probe connection and quick maintenance. THe XPD probe body benefits from the inclusion of an internal filter that fully protects the microphone and loudspeaker ports.

The XPD probe can be used for DPOAE, TEOAE and AABR testing. Add optional Dual* channel for AABR screening

*Additional charges apply

Consumables

Consumables

Consumables

The Otodynamics XPD probe is designed to make daily maintenance and cleaning simple and quick. The new TIP HOLDER is fitted over the probe body and locates precisely with the sound ports when the TIP HOLDER tabs are clicked securely on the probe body.

Add: Scanning

Add: Scanning

Add: Scanning

Add the built in QR/Barcode reader to your Otoport Pro and effortlessly scan patient detail for easy data input*.  Search and find instantly, paitent test records stored on the Otoport Pro.  Setup user scan login access.

To upgrade Otoport Pro or to tailor the test mode for specific applications, simply scan a different QR code license**. With the Otoport Pro you are not limited to one installation.

Watch video...


* subject to advance information of facility's QR specification
** charges apply

OtoLink PC Data Management Suite

OtoLink PC Data Management Suite

OtoLink PC Data Management Suite

Download test results wirelessly or via USB from the Otoport or when docked in the docking station. Test details can be quickly reviewed, printed and archived. Printing reports directly to a PDF file is available. Data can be exported, for example, to OZ, HiTrack, GDT, Noah** or as CSV file. Patient Work Lists can be uploaded to the Otoport, assisting with managing workloads in busy environments. Otolink also provides access to firmware and application updates from Otodynamics via the internet. Compatible with Windows 11 and 10.

Included: 2 Year Warranty

Included: 2 Year Warranty

Included: 2 Year Warranty

Otodynamics is recognised globally by its customers as the industry standardand renowned for QUALITY, RELIABILITY and PERFORMANCE.  With a 2 year warranty as standard, when you buy from Otodynamics you can be confident of a Gold standard product, trusted results and first class support. Otodynamics has been providing audiology equipment for over 35 years through a growing global network of trusted and approved partners providing you with local expert advice and knowledge.  Additional warranty is available, ask for details



Specification Table

SPEC DPOAE TEOAE AABR
TEST CONFIGURABILITY 1 Protocol, 4 Parameters 1 Protocol, 4 Parameters 1 Protocol, 2 Parameters
FREQUENCY RANGE 2, 3, 4, 6 kHz 4 frequencies 1, 1.5, 2, 3, 4 kHz -
FREQUENCY RESOLUTION Half octave Half octave bandwidth -
STIMULUS LEVELS 60/55 or 65/50 or 65/55 dBSPL Fixed 84 dBSPLpe 30 to 45 (Δ1dB)
PASS CRITERIA 2, 3 or 4 frequencies 2, 3, or 4 half octave bands, or wide / narrow bands FSP with neonatal waveform template
CPT CODE 92587 92558 92650
