Otocheck ABR

Screening with Confidence

CUSTOMIZABLE
2 Protocols

STIMULUS LEVELS
Custom 5 to 60 dBnHL

STIMULUS TYPE
Short Chirp or Click
via OAE probe at ~55/s

Download brochure

Otocheck ABR

Screening with Confidence

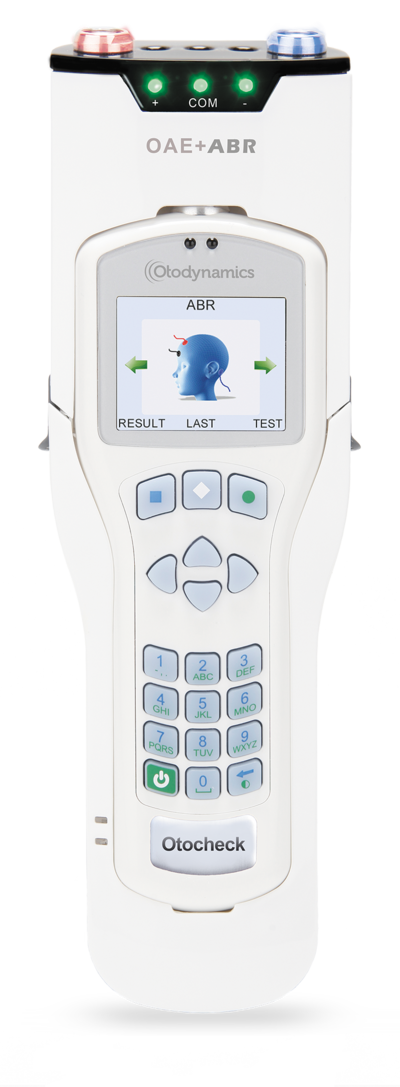

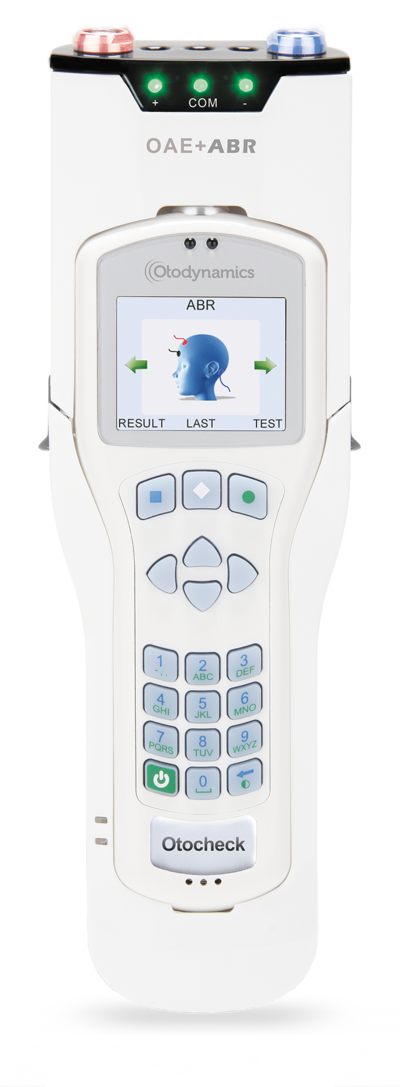

The Otodynamics Otocheck ABR is a superior handheld screening instrument offering fast in-depth ABR screening. The instrument comprises an Otocheck in an ABR sleeve, giving flexibility for OAE+ABR combination. The Otocheck ABR can be supplied either with signal or binaural channels. The ABR sleeve can be purchased separately and fitted retrospectively to upgrade existing color Otoports/Otochecks.

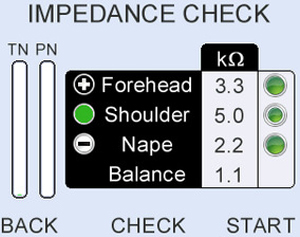

Pre-test environment monitoring -power line noise (PN), total infant noise (TN), Individual electrodes are highlighted if their impedance is too high.
Pre-test environment monitoring -power line noise (PN), total infant noise (TN), Individual electrodes are highlighted if their impedance is too high.

Every test starts with automated ‘in-the-ear’ calibration ensuring accurate results. Every test starts with automated ‘in-the-ear’ calibration ensuring accurate results.

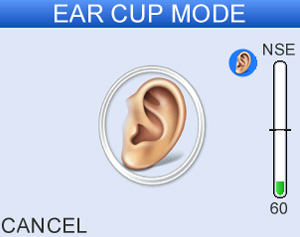

Choice in stim delivery ear cup/insert
The Otoport ABR automatically detects if ear cups or probe inserts are being used. Choice in stim delivery ear cup/insert The Otoport ABR automatically detects if ear cups or probe inserts are being used.

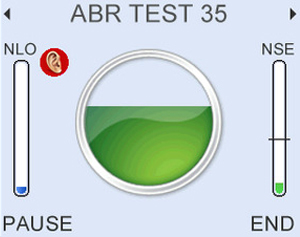

Clear test progression. It checks for changes in noise levels and electrode impedance which may prevent progress, giving helpful on screen alerts Clear test progression. It checks for changes in noise levels and electrode impedance which may prevent progress, giving helpful on screen alerts

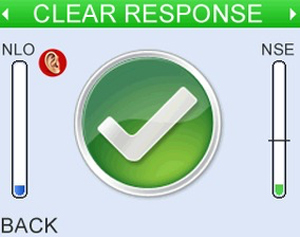

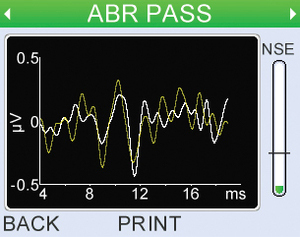

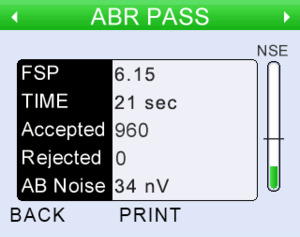

The Otoport ABR continually monitors Fsp and ABR waveform shape to ensure a ‘Clear Response’ is a true response. The Otoport ABR continually monitors Fsp and ABR waveform shape to ensure a ‘Clear Response’ is a true response.

Faster ABR results with our AABR algorithm reduces test time to an average of only 76 seconds for a clear response. Faster ABR results with our AABR algorithm reduces test time to an average of only 76 seconds for a clear response.

Weighted averaging for noise management
Weighted averaging for noise management

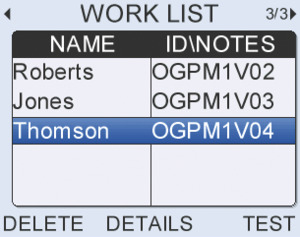

Programmable Worklist and downloadable secure database, login access if required Programmable Worklist and downloadable secure database, login access if required

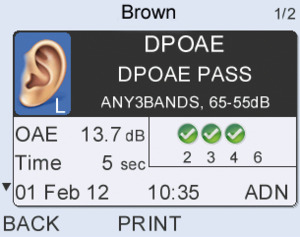

Searchable 500 tests storage listed in chronological order with onscreen test result summary table Searchable 500 tests storage listed in chronological order with onscreen test result summary table

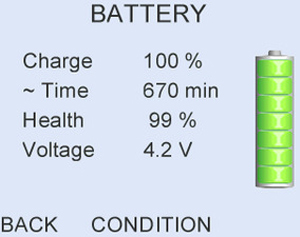

Long battery life - up to 250 test cycles or one full working wee Long battery life - up to 250 test cycles or one full working wee

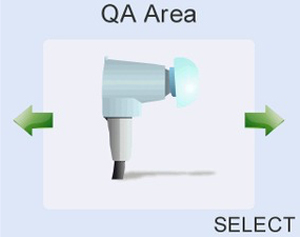

Dedicated QA test area & history view. On board Probe test facility, Electrode cable continuity test and Probe ID tracking Dedicated QA test area & history view. On board Probe test facility, Electrode cable continuity test and Probe ID tracking

Extensive protocol control with login and administrator functions Extensive protocol control with login and administrator functions

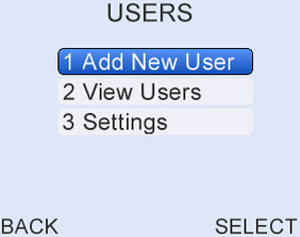

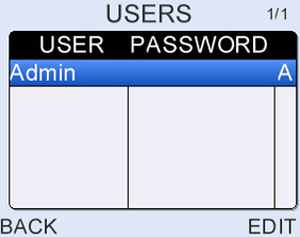

Create multiple user logins with password protection with Admin control if required Create multiple user logins with password protection with Admin control if required

STIM DELIVERY

STIM DELIVERY

STIM DELIVERY

The Otoport ABR offers a choice in stim delivery.  Run an ABR test using ear cups or insert stimulation using your preferred electrodes and our OAE probe. Both provide amazingly fast results. Use of inserts reduces consumable costs.

ABR Sleeve

ABR Sleeve

ABR Sleeve

The instrument comprises an Otoport in an ABR sleeve, giving flexibility for OAE+ABR combination. The Otoport ABR is supplied with signal channel and can be upgraded to binaural channels. The ABR sleeve can be purchased separately and fitted retrospectively to upgrade existing colour Otoports.

OTOLINK SUITE: Included

OTOLINK SUITE: Included

OTOLINK SUITE: Included

Manage your data easily and efficiently with the Otolink PC patient data management suite. Download test results wirelessly* or via USB from the Otoport or when docked in the docking station**. Test details can be quickly reviewed, printed and archived. Printing reports directly to PDF file is available. Data can be exported, for example, to Oz, Hi Track, GDT, Noah*** or as CSV file. Patient work lists can be uploaded to the Otoport, assisting with managing workloads in busy environments. Otolink also provides access to firmware and application updates from Otodynamics via the internet.
Compatible with Windows 10, 8 and 7.

With wireless connection option ** With docking station option *** With Noah option

LANGUAGE OPTION

LANGUAGE OPTION

LANGUAGE OPTION

Set the language you require through the Otoports configuration menu

  • English
  • French
  • German
  • Hungarian
  • Italian
  • Polish
  • Portuguese
  • Spanish
  • Turkish

OTOPORT DESIGN

OTOPORT DESIGN

OTOPORT DESIGN

  • Light weight and portable with easy-to-use keypad
  • Automated self-test system when powering on Otoport
  • Intuitive test progress graphic displaying signal to noise progress
  • Long battery life - up to 250 test cycles or one full working week
  • On screen notification of poor probe fit, high noise level and ringing stimulus
  • Each test is saved with the actual physiological response

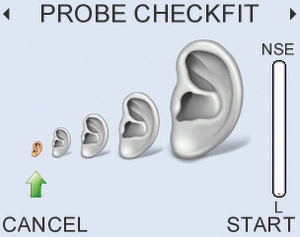

  • Comprehensive probe fit and noise level indicators
  • On board Probe test facility and Probe ID tracking

EASY FIT PROBE DESIGN

EASY FIT PROBE DESIGN

EASY FIT PROBE DESIGN

Otodynamics was the first with a right angled probe, designed to be small, light weight and easy to fit to help achieve a good probe fit. Find out about longer probe life

2 YEAR WARRANTY: Included

2 YEAR WARRANTY: Included

2 YEAR WARRANTY: Included

2 year instrument warranty is provided with all Otoports.  Additional warranty is available if required ask for details

Testimonials

Accessories Included

Specification Table

SPEC ABR
TEST CONFIGURABILITY 2 Protocols, 9 Parameters
STIMULUS LEVELS (dBSPL) 5 to 60dBnHL (Δ1dB)
STIMULUS TYPE Chirp and Click
LANGUAGES English, Spanish, French, Portuguese, Italian, German, Turkish, Polish, Hungarian
CPT CODES 92586
