Otocheck DP
RAPIDPediatric mode
FASTEasy to use
Clear Pass/Refer result
Clear Pass/Refer result
FREQUENCY RANGE2 to 6 kHz
Pass SNR 1 to 10dB
Pass SNR 1 to 10dB
Ideal Paediatric & Newborn screener
The Otocheck DP is an easy and simple to use handheld DPOAE system with an intuitive interface for both paediatric and newborn hearing screening. Fast, accurate and automatic pass/refer result with low cost consumables and long battery life all make the Otocheck DP the ideal way to screen with DPOAEs.
Easy ‘press-and-go’ operation with choice of 2 key press test start.
In-ear calibration ensuring accurate results. 6 preset stimulus levels 60/50 to 70/70
Fast and clear Pass/Refer result 2, 3,or 4 bands pass criteria.
Searchable 500 tests storage listed in chronological order with onscreen test result summary table
Enter Full Patient demographic data as needed
Programmable Worklist and downloadable secure database, login access if required
Long battery life - up to 250 test cycles or one full working week
Extensive protocol control with login and administrator functions

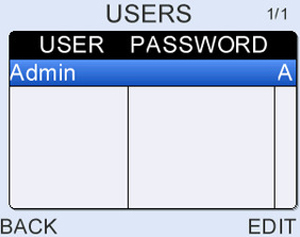

Create multiple user logins with password protection with Admin control if required
Newborn Screening
Newborn Screening
Otocheck DP is also a highly capable infant screener with proven reliability and performance in universal newborn hearing screening programs around the world. Results are achieved typically in seconds. Add AABR at any time with the easy to fit ABR sleeve. (see additional option)
Pedatric Assessment
Pedatric Assessment
The Otocheck DP is sensitive to both sensory and conducted deafness in the main speech frequency range and quickly alerts you to possible hearing problems. Add animated distraction display, additional option, helping keep the child engaged and quiet throughout the test.
NEW XGD PROBE
NEW XGD PROBE
The XGD probe is an enhanced replacement of the Otodynamics UGD and UGS probes, and offers advantages for both screening and clinical applications. viz easier and more economical maintenance, and enhanced acoustic performance.
Use of the XGD probe for testing is exactly the same as with our current UGD and UGS probes. The difference is only in the way it is maintained
• Easier Mainenance
• Low-cost Consumables
• Improved Performance
• Longer Probe Life
• Included with new Otoport/Otocheck instrument sales
OTOLINK SUITE: Included
OTOLINK SUITE: Included
Manage your data easily and efficiently with the Otolink PC patient data management suite. Download test results wirelessly* or via USB from the Otoport or when docked in the docking station**. Test details can be quickly reviewed, printed and archived. Printing reports directly to PDF file is available. Data can be exported, for example, to Oz, Hi Track, GDT, Noah*** or as CSV file. Patient work lists can be uploaded to the Otoport, assisting with managing workloads in busy environments. Otolink also provides access to firmware and application updates from Otodynamics via the internet.
Compatible with Windows 10, 8 and 7.
With wireless connection option ** With docking station option *** With Noah option
LANGUAGE OPTION
LANGUAGE OPTION
Set the language you require through the Otoports configuration menu
|
|
OTOPORT DESIGN
OTOPORT DESIGN
|
|
EASY FIT PROBE DESIGN
EASY FIT PROBE DESIGN
Otodynamics was the first with a right angled probe, designed to be small, light weight and easy to fit to help achieve a good probe fit. Find out about longer probe life
2 YEAR WARRANTY: Included
2 YEAR WARRANTY: Included
2 year instrument warranty is provided with all Otoports. Additional warranty is available if required ask for details
Testimonials
The OTOPORT OAE+ABR replaced ECHOCHECK; this unit totally changed the face of OAE testing for the Audiology team, now with the enhancement of ABR screening children who were typically sent overseas were now tested locally. Over the years the Audiological Services has forged with Otodynamics more specifically Mr. Jon Parsons. Jon has assisted with every purchase both equipment and supplies and has been able to give an answer to every question that arose.
97.84% of our customers gave Otodynamics customer support 5 out of 5 and reported that they have 'very positive' experience
Surveyed 185 customers
Accessories Included
User manuals
Specification Table
| SPEC | DPOAE |
| TEST CONFIGURABILITY | 1 Protocol, 7 Parameters |
| FREQ. RANGE | 2, 3, 4, 6 kHz |
| FREQ. RESOLUTION | 1/2 octave |
| STIMULUS LEVELS (dBSPL) | 60/50 to 70/70 (6 Presets) (dBSPL) |
| PASS CRITERIA | 2, 3, 4 Bands |
| PASS SNR | 1 to 10dB per band (Δ1dB) |
| CPT CODES | 92587, 92558 |
Additional Options
ADD AABR
At any time add ABR screening to your Otoport with the easy-to-fit ABR sleeve, Ideal for newborn screening. Configurable dBnHL stimulus level. Choice of pass criteria. Automated start for speed. Clear pass/refer indication. Real time ABR waveform view. Worklist and user login option for large screening programs.
READ MORE
ADD NOAH
Our NOAH option makes Otolink PC data management suite fully compatible with Noah 4 and Noah 4 based data systems
ADD DOCKING STATION
The docking station replaces the Otoport charging cradle with full connectivity to the OAE Otoport, PC, printer and charger. (not compatible with ABR sleeve)
ADD MINI PRINTER
Compact, fast print time, numerical and band pass data. Automatic print-on-connect mode. Battery Powered. Choice of wired*/wireless** printing via the Otoport
*Wired printing not compatible with ABR sleeve
**Wireless connection included as standard on the Otoport Advance
