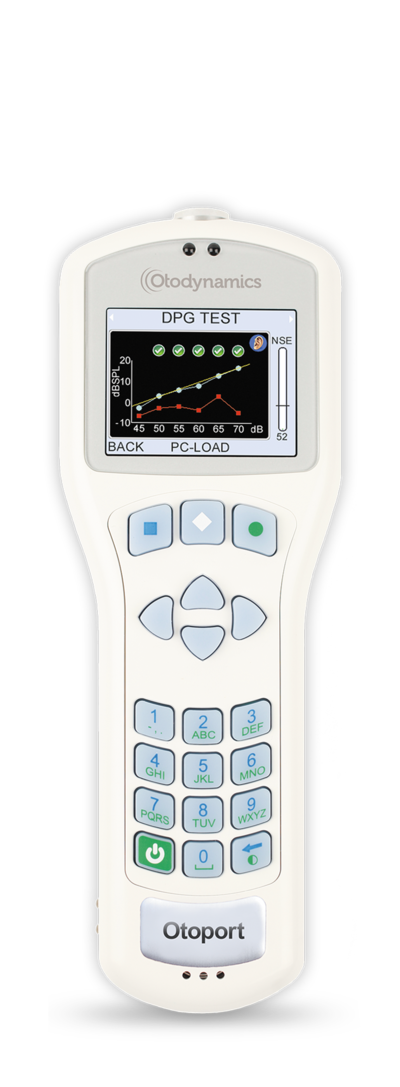

Otoport Advance

Advanced clinical OAEs

The Otoport Advance is the top of the range Otoport, an enhanced DPOAE AND TEOAE clinical handheld instrument, boasting powerful multi-processor internal architecture.  Providing detailed test information enabling raw data recall, in-depth analysis and compare of results on the instrument or on PC using the ILOV6 software supplied. Configurable settings facilitate traceable protocols. Programmable test ‘macros’ allow automated monitoring of OAEs over time  at multiple levels with Smart SNR, configurable -15 to 0

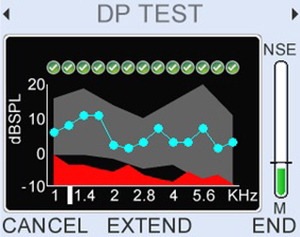

High quality 13 frequency
DPgrams with settable
normative range markers High quality 13 frequency DPgrams with settable normative range markers

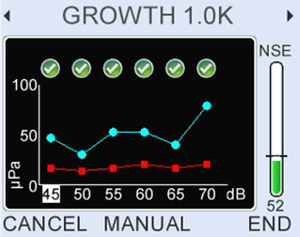

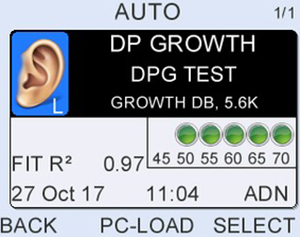

DP growth I/O function
analysis, dB/dB and scissor
modes. Intelligent or manual
test progress management
for fast testing DP growth I/O function analysis, dB/dB and scissor modes. Intelligent or manual test progress management for fast testing

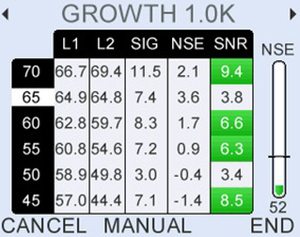

Detailed numerical data
available with each test
result. Stimulus, response
noise levels plus signal to
noise ration SNR Detailed numerical data available with each test result. Stimulus, response noise levels plus signal to noise ration SNR

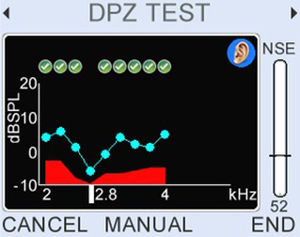

DP zoom focuses on
a specific range of
frequencies in high
resolution (up to 16 pts/oct)
to explore details DP zoom focuses on a specific range of frequencies in high resolution (up to 16 pts/oct) to explore details

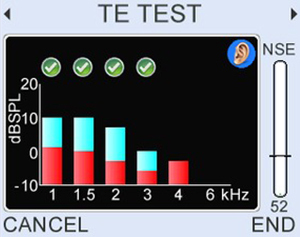

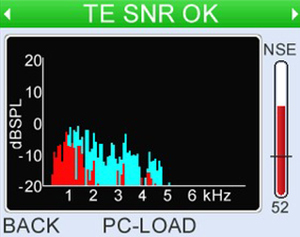

Comprehensive TEOAE analysis. , high resolution spectrum Comprehensive TEOAE analysis. , high resolution spectrum

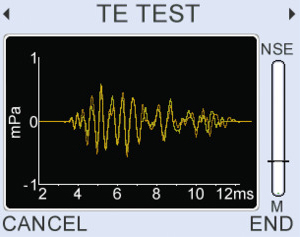

View TEOAE waveform View TEOAE waveform

View TEOAE signal and noise
histogram View TEOAE signal and noise histogram

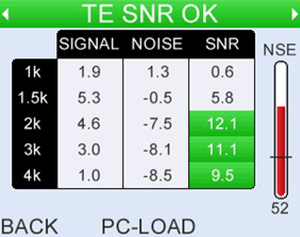

View TEOAE numerical data View TEOAE numerical data

In-Ear Calibration
ensuring accurate results In-Ear Calibration ensuring accurate results

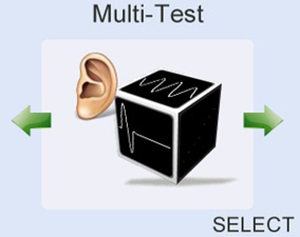

Multi Test macro (x4 protocals)
function- build a protocol
giving a sequence of DP
and/or TE tests Multi Test macro (x4 protocals) function- build a protocol giving a sequence of DP and/or TE tests

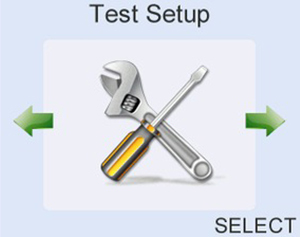

Comprehensive automatic or manual test setup of
parameter, protocol and individual clinical pass criteria Comprehensive automatic or manual test setup of parameter, protocol and individual clinical pass criteria

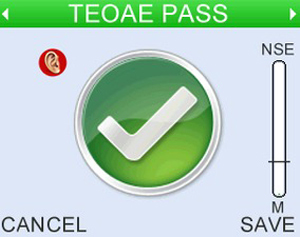

Configurable as a simple-to-use TEOAE automated screener
for hearing screening applications Configurable as a simple-to-use TEOAE automated screener for hearing screening applications

Configurable as a simple-to-use DPOAE automated screener Configurable as a simple-to-use DPOAE automated screener

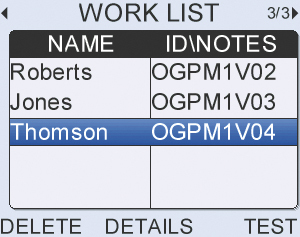

Programmable Worklist and downloadable secure database Programmable Worklist and downloadable secure database

Searchable1000
tests storage listed in
chronological order with
on-screen test result
summary table. Detailed
demographic data Searchable1000 tests storage listed in chronological order with on-screen test result summary table. Detailed demographic data

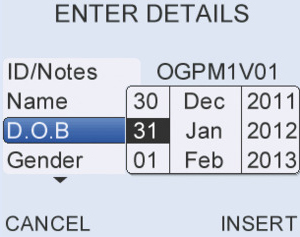

Extensive patient database fields Enter Full Patient demographic data as needed Extensive patient database fields Enter Full Patient demographic data as needed

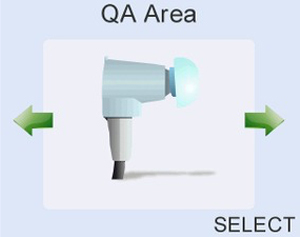

Dedicated QA test area & history view. On board Probe test facility and Probe ID tracking Dedicated QA test area & history view. On board Probe test facility and Probe ID tracking

Extensive protocol control with login and administrator functions Extensive protocol control with login and administrator functions

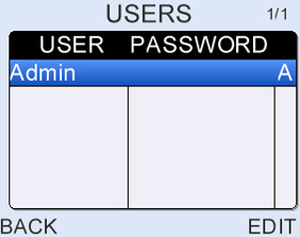

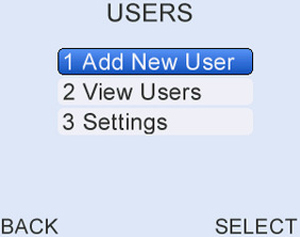

Create multiple user logins with password protection with Admin control if required Create multiple user logins with password protection with Admin control if required

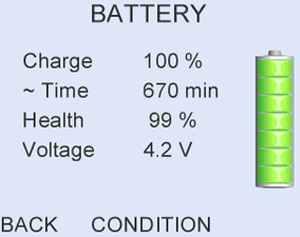

Long battery life - up to 250 test cycles or one full working week Long battery life - up to 250 test cycles or one full working week

APPLICATION

APPLICATION

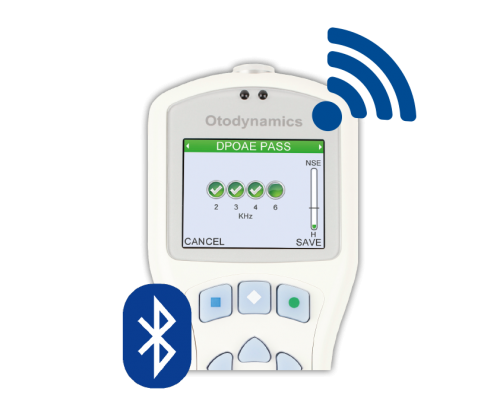

Wireless Connection: Included

Wireless Connection: Included

Wireless Connection: Included

Transfer data wirelessly to the Otolink suite. Print wirelessly to the Otodynamics Mini printer.

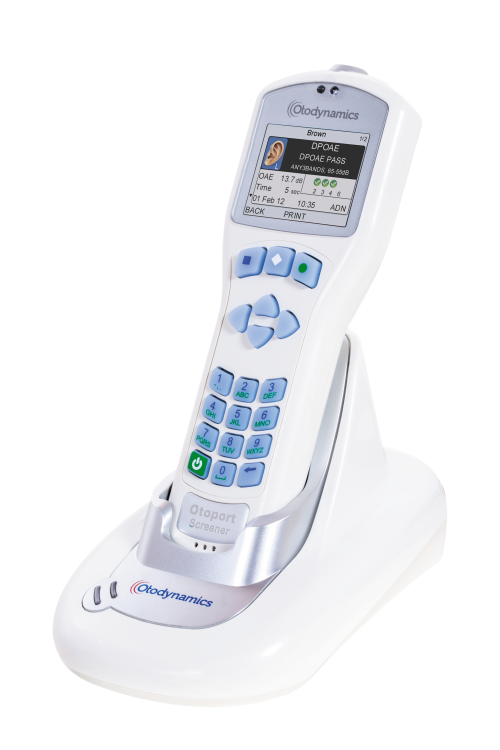

Docking Station: Included

Docking Station: Included

Docking Station: Included

The docking station provides full connectivity to the OAE Otoport, PC, printer and charger. Configure your Otoport to download and/or print result once placed in docked, either via wired or wirlessly

(not compatible with ABR sleeve)

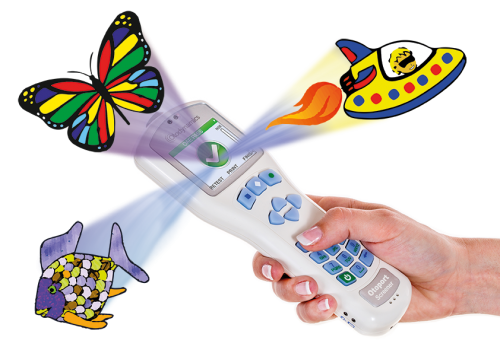

PAEDIATRIC DISPLAY: Included

PAEDIATRIC DISPLAY: Included

PAEDIATRIC DISPLAY: Included

Highly effective with children the visual distraction displays provides 3 animations, engaging the child, helping keep them quiet. The animation gradually fills with colour if the child is quiet but colour fades when child is noisy.

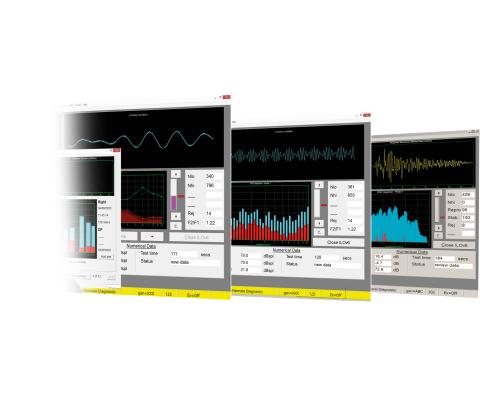

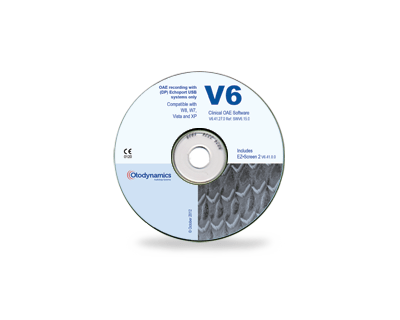

ILO v6 SOFTWARE: Included

ILO v6 SOFTWARE: Included

ILO v6 SOFTWARE: Included

Transfer data from Otolink to our ILO-V6 OAE analysis software with tracked integration into the Echoport V6 database,and exporting to OZ, Hitrack, ASCII, XML, archive. Compatible with Windows 10, 8 and 7.

OTOLINK SUITE: Included

OTOLINK SUITE: Included

OTOLINK SUITE: Included

Manage your data easily and efficiently with the Otolink PC patient data management suite. Download test results wirelessly* or via USB from the Otoport or when docked in the docking station**. Test details can be quickly reviewed, printed and archived. Printing reports directly to PDF file is available. Data can be exported, for example, to Oz, Hi Track, GDT, Noah*** or as CSV file. Patient work lists can be uploaded to the Otoport, assisting with managing workloads in busy environments. Otolink also provides access to firmware and application updates from Otodynamics via the internet.
Compatible with Windows 10, 8 and 7.

With wireless connection option ** With docking station option *** With Noah option

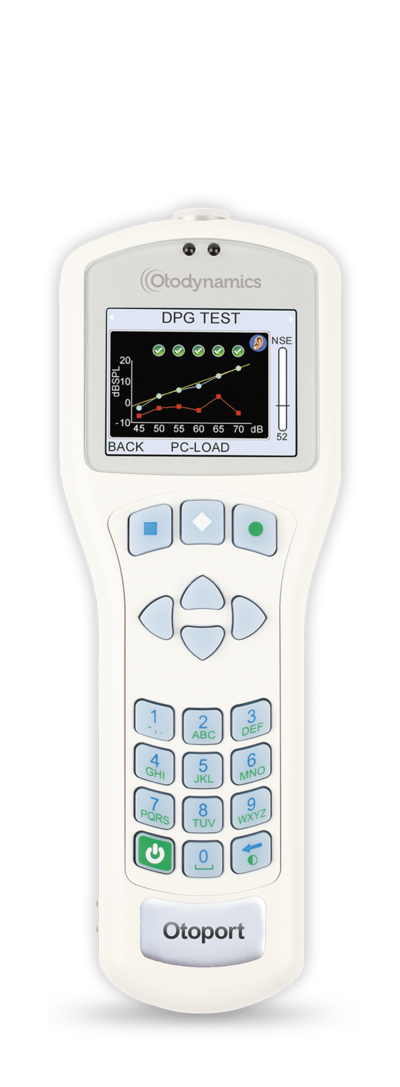

OTOPORT DESIGN

OTOPORT DESIGN

OTOPORT DESIGN

  • Light weight and portable with easy-to-use keypad
  • Automated self-test system when powering on Otoport
  • Intuitive test progress graphic displaying signal to noise progress
  • Long battery life - up to 250 test cycles or one full working week
  • On screen notification of poor probe fit, high noise level and ringing stimulus
  • Each test is saved with the actual physiological response

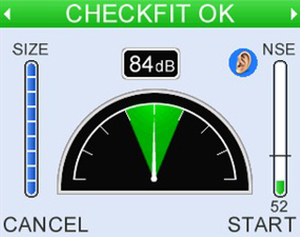

  • Comprehensive probe fit and noise level indicators
  • On board Probe test facility and Probe ID tracking

EASY FIT PROBE DESIGN

EASY FIT PROBE DESIGN

EASY FIT PROBE DESIGN

Otodynamics was the first with a right angled probe, designed to be small, light weight and easy to fit to help achieve a good probe fit. Find out about longer probe life

2 YEAR WARRANTY: Included

2 YEAR WARRANTY: Included

2 YEAR WARRANTY: Included

2 year instrument warranty is provided with all Otoports.  Additional warranty is available if required ask for details

Testimonials

Accessories Included

Specification Table

SPEC DPOAE TEOAE
TEST CONFIGURABILITY 7 Protocols, 16 Parameters 3 Protocols, 16 Parameters
FREQ. RANGE (kHz) 1 to 8 kHz, 13 Frequencies 1, 1.5, 3, 4, 5, 6 kHz
FREQ. RESOLUTION Up to 16 pts/octave 80Hz or 1/2 Octave bandwidth
STIMULUS LEVELS (dBSPL) 40 to 75 (Δ5dB) 60 to 90 (Δ1db)
PASS CRITERIA 9 Parameters 7 Parameters
PASS SNR 1 to 14dB per band (Δ1dB) 1 to 14dB (Δ1dB)
