Otoport DP Clinical

Exactly What’s Needed For Clinical OAEs

POWERFUL ANALYSIS
Clinical level
DPOAE & TEOAE

PEDIATRIC FRIENDLY
Distraction animated display

FREQUENCY RANGE
DPOAE 1 to 8 kHz,
12 Frequency

Download brochure

Otoport DP Clinical

Exactly What’s Needed For Clinical OAEs

Designed for the clinic and screening applications, the Otoport DP Clinical handheld OAE instrument can meet your needs. It’s easy to switch between analytical clinical modes and screening modes. Providing 6 DPOAE protocols. Configurable noise management and rejection, Individual band pass indications and Selectable automated DP frequency sweep management.  Optional TEOAE clinical modes available.

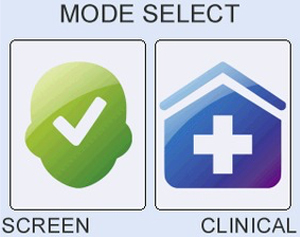

Easy-to-use one key screening or clinical setup Easy-to-use one key screening or clinical setup

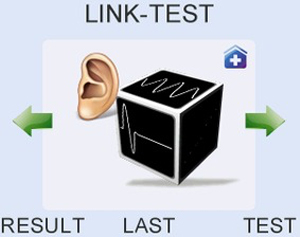

Link test macro function - build a protocol giving a sequence of DP and/or TE tests Link test macro function - build a protocol giving a sequence of DP and/or TE tests

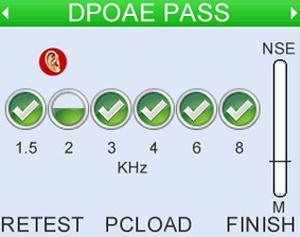

Any 2, 3, 4 or 5 bands configurable DP pass criteria Any 2, 3, 4 or 5 bands configurable DP pass criteria

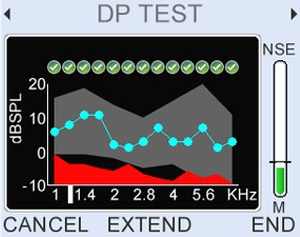

High quality 12 frequency line DPgrams or higher resolution with normative range markers from 1-8kHz up to 4pts/octave and or higher resolution High quality 12 frequency line DPgrams or higher resolution with normative range markers from 1-8kHz up to 4pts/octave and or higher resolution

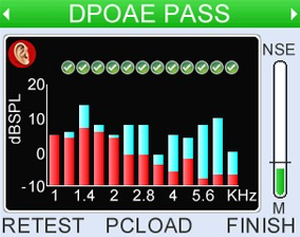

High quality 12 frequency bar DPgrams or higher resolution with normative range markers from 1-8kHz up to 4pts/octave and or higher resolution High quality 12 frequency bar DPgrams or higher resolution with normative range markers from 1-8kHz up to 4pts/octave and or higher resolution

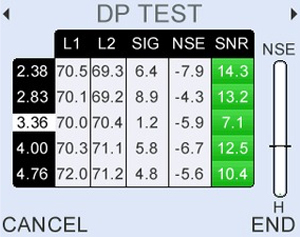

Numerical table of signal, noise and SNR Numerical table of signal, noise and SNR

Any 2, 3, 4 or 5 bands configurable DP pass criteria Any 2, 3, 4 or 5 bands configurable DP pass criteria

(OPTIONAL TEOAE)

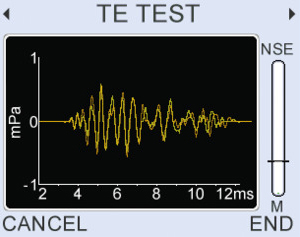

Live TEOAE waveform (OPTIONAL TEOAE) Live TEOAE waveform

(OPTIONAL TEOAE)

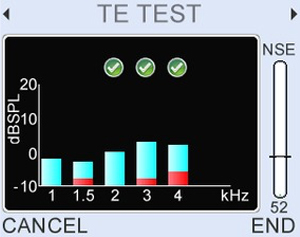

Sensitive TEOAEs 1-4kHz (OPTIONAL TEOAE) Sensitive TEOAEs 1-4kHz

(OPTIONAL TEOAE)

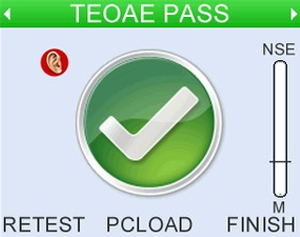

Configurable as a simple-to-use automated screener for hearing screening applications (OPTIONAL TEOAE) Configurable as a simple-to-use automated screener for hearing screening applications

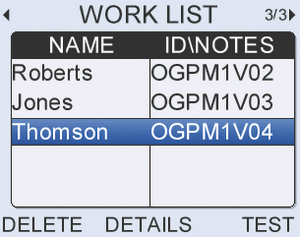

Worklist and downloadable secure database. Login access if required Worklist and downloadable secure database. Login access if required

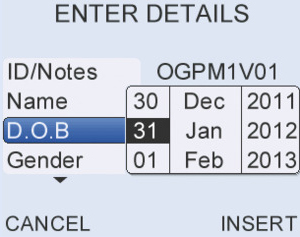

Enter Full Patient demographic data as needed Enter Full Patient demographic data as needed

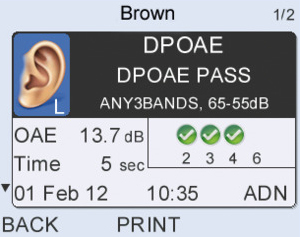

Searchable 500 tests storage listed in chronological order with onscreen test result summary table Searchable 500 tests storage listed in chronological order with onscreen test result summary table

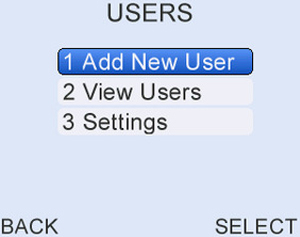

Extensive protocol control with login and administrator functions
Extensive protocol control with login and administrator functions

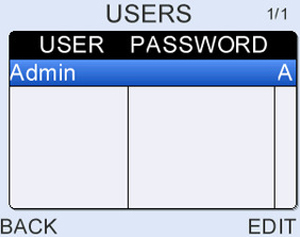

Create multiple user logins with password protection with Admin control if required
Create multiple user logins with password protection with Admin control if required

Clinical Audiology

Clinical Audiology

Clinical Audiology

Otoport DP Clinical provides high quality 12 frequency DPgrams with settable normative range markers from 1-8kHz. Tests are highly configurable. You can preconfigure two clinical DPOAE modes which are easily accessible. Select the stimulus level from 6 L1, L2 combinations and choose the analysis display as half octave or DPgram. Complete your clinical OAE examination with the optional TEOAE mode. Displayed as a waveform or ½ octave analysis, 1-4kHz. There are two preconfigurable TEOAE clinical modes.

Pediatric Assessment

Pediatric Assessment

Pediatric Assessment

The Otoport DP Clinical pediatric screening mode is fast and highly effective with children, alerting you to the possibility of both conductive and cochlear losses. With visual distraction displays, one of 3 cartoons will engage the child to encourage quietness. The cartoon gradually fills with color if the child is quiet but colors fade when the child is noisy.

Newborn Screening

Newborn Screening

Newborn Screening

The Otoport DP Clinical is also an ideal newborn screener whatever your preferred screening method. It includes 2 DPOAE pre-configurable screening modes. Automated start for speed with clear pass/refer indications based on configurable pass criteria. The optional TEOAE  includes 2 TEOAE Quickscreen modes

Pedatric Display:Included

Pedatric Display:Included

Pedatric Display:Included

Highly effective with children the visual distraction displays provides 3 animations, engaging the child, helping keep them quiet. The animation gradually fills with color if the child is quiet but colors fade when child is noisy.

OTOLINK SUITE: Included

OTOLINK SUITE: Included

OTOLINK SUITE: Included

Manage your data easily and efficiently with the Otolink PC patient data management suite. Download test results wirelessly* or via USB from the Otoport or when docked in the docking station**. Test details can be quickly reviewed, printed and archived. Printing reports directly to PDF file is available. Data can be exported, for example, to Oz, Hi Track, GDT, Noah*** or as CSV file. Patient work lists can be uploaded to the Otoport, assisting with managing workloads in busy environments. Otolink also provides access to firmware and application updates from Otodynamics via the internet.
Compatible with Windows 10, 8 and 7.

With wireless connection option ** With docking station option *** With Noah option

LANGUAGE OPTION

LANGUAGE OPTION

LANGUAGE OPTION

Set the language you require through the Otoports configuration menu

  • English
  • French
  • German
  • Hungarian
  • Italian
  • Polish
  • Portuguese
  • Spanish
  • Turkish

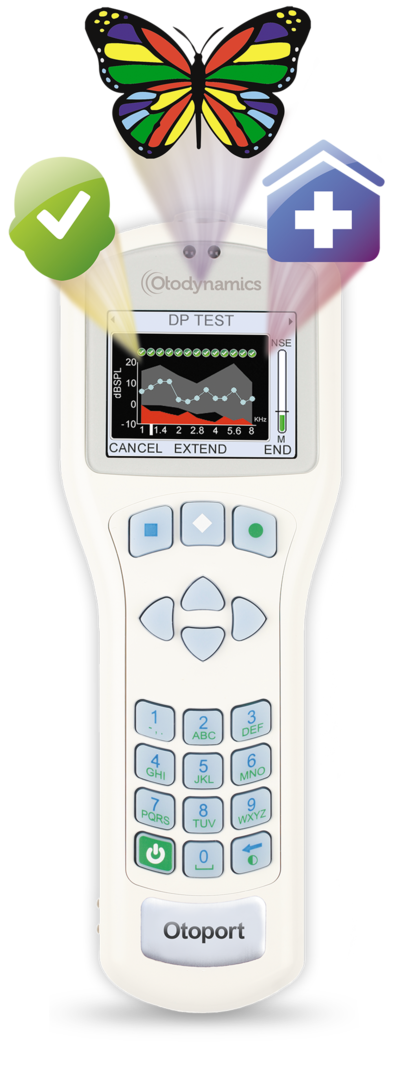

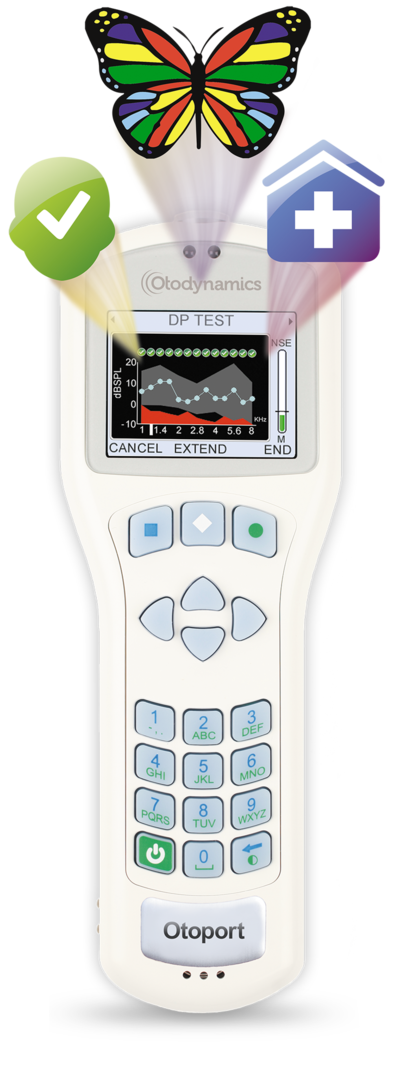

OTOPORT DESIGN

OTOPORT DESIGN

OTOPORT DESIGN

  • Light weight and portable with easy-to-use keypad
  • Automated self-test system when powering on Otoport
  • Intuitive test progress graphic displaying signal to noise progress
  • Long battery life - up to 250 test cycles or one full working week

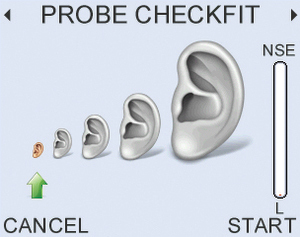

  • On screen notification of poor probe fit, high noise level and ringing stimulus
  • Each test is saved with the actual physiological response
  • Comprehensive probe fit and noise level indicators
  • On board Probe test facility and Probe ID tracking

EASY FIT PROBE DESIGN

EASY FIT PROBE DESIGN

EASY FIT PROBE DESIGN

Otodynamics was the first with a right angled probe, designed to be small, light weight and easy to fit to help achieve a good probe fit. Find out about longer probe life

2 YEAR WARRANTY: Included

2 YEAR WARRANTY: Included

2 YEAR WARRANTY: Included

2 year instrument warranty is provided with all Otoports.  Additional warranty is available if required ask for details

Testimonials

Accessories Included

Specification Table

SPEC DPOAE TEOAE (Optional)
TEST CONFIGURABILITY 6 Protocols, 11 Parameters 2 Protocols, 10 Parameters
FREQ. RANGE (kHz) 1 to 8 kHz, 12 Frequencies 1, 1.5, 2, 3, 4kHz
FREQ. RESOLUTION Up to 4 pts/octave 1/2 Octave bandwidth
STIMULUS LEVELS 60/50 to 70/70 (6 Presets) (dBSPL) 60 to 84 (Δ1db) (dBSPLpe)
PASS CRITERIA 3 Parameters 2, 3, or 4 1/2 octave, wide or narrow bands to pass
PASS SNR 1 to 10dB per band (Δ1dB) 6dB (Fixed)
CPT CODES 92588, 92587, 92558 92587, 92558
