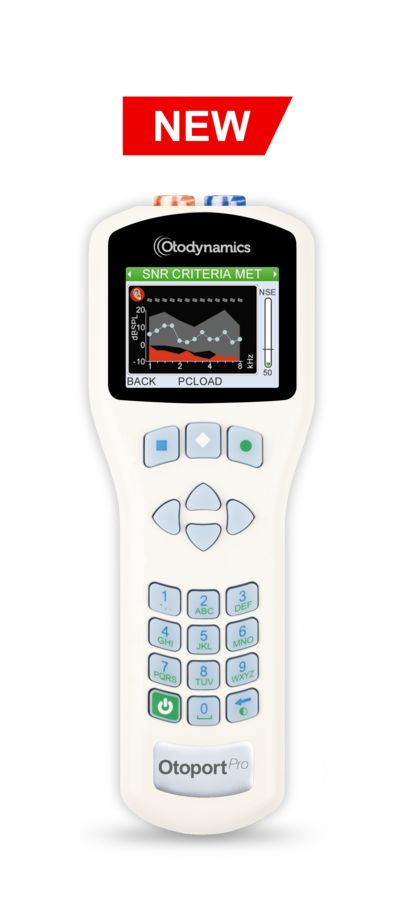

Otoport Pro CLINICAL

The Otoport Pro Clinical has exactly what’s needed for clinical OAEs at a highly competitive price. Six powerful customizable protocols, including 12 frequency 1-8kHz DPgram with normative range markers. Clinical OAEs have real clinical value with adults and older children, alerting you to the possibility of both conductive and cochlear losses. The Otoport Pro Clinical includes all the Otoport Pro Screener functions and beyond. With one touch, the Otoport Pro Clinical can be configured for adult, pediatric or infant screening applications.

You can create customized DPOAE test protocols for special requirements. Use multiple levels to record cochlear function to high accuracy e.g. for the detection of changes with therapy or for monitoring cochlear status over time

High quality 12 frequency bar DPgrams or higher resolution with normative range markers from 1-8kHz up to 4pts/octave and or higher resolution.

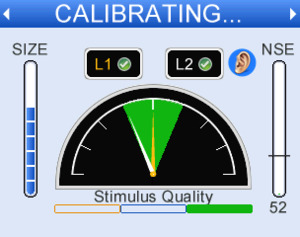

Every test starts with automated ‘in-the-ear’ calibration ensuring accurate results.

Store up to 2000* tests listed in chronological order with on-screen test result summary table.

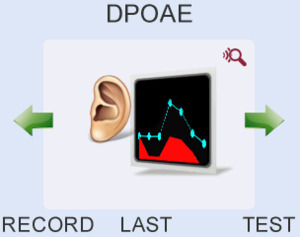

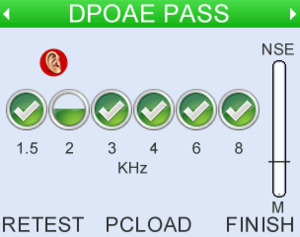

Configurable as a simple-to-use DPOAE and TEOAE (if enabled) automated screener

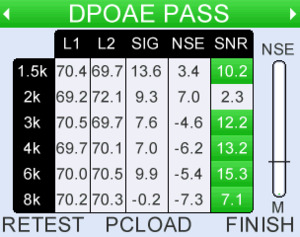

Detailed numerical data available with each test result. Stimulus, response noise levels plus signal to noise ration SNR

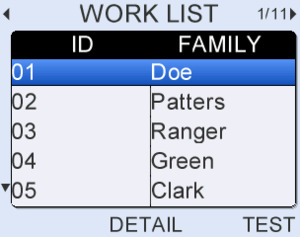

Use the programmable Work List feature to plan your screening workload.

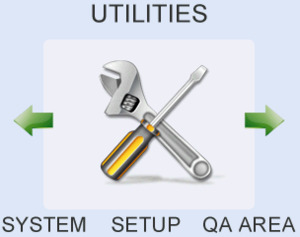

Comprehensive automatic or manual test setup of parameter, protocol and individual clinical pass criteria.

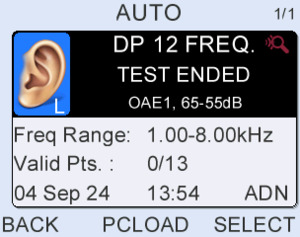

DP 12 FREQUENCY TEST

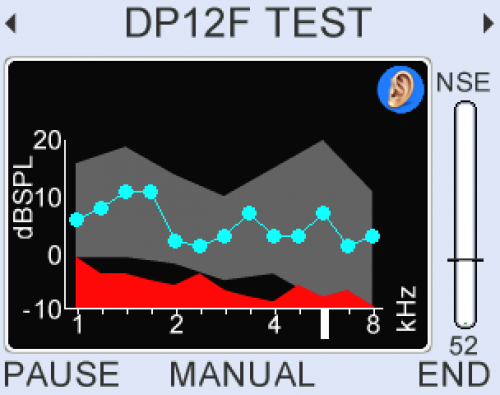

Two customizable 1-8kHz DPgram protocols with ¼ octave resolution and 6 selectable stimulus formats. Smart frequency sweep management optimizes test time and settable normative range markers assist interpretation.

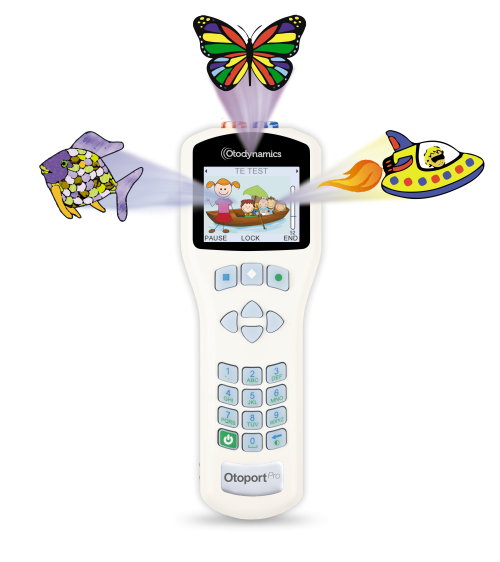

Unique Distraction Animation

When conducting challenging pediatric OAE assessments, the Otoport Pro has 6 visual distraction animations that helps to keep the child quiet and engaged. The child is encouraged to remain quiet as they watch the onscreen cartoon gradually filling with color. If noise is detected during the test, the colors quickly fade and return when the child settles creating positive reinforcement.

Watch video...

Included: SCREENER Application

FAST | EASY | CLEAR
The Otoport Pro SCREENER application is included in this model, providing an all-rounder screener with enabled test type preconfigured for screener meeting a wide range of needs. From newborn screening through to pediatric assessment, based on 35 years experience. The Otoport Screener is ready to go, intuitive,and fast, it's a pleasure to use.

Otoport Pro Design

With the Otoport Pro you get multiple days of use between battery charges. Its robust design, large onboard searchable patient database and detailed response capture, means Otoport Pro can meet all your screening and or clinical program management needs.

Included: Wireless Connection

Transfer data wirelessly to the PC Otolink suite software or print wirelessly to the Otodynamics Mini printer.

Probe XPD Connection

The XPD probe is designed for the Otodynamics Pro series with easy push pull probe connection and quick maintenance. THe XPD probe body benefits from the inclusion of an internal filter that fully protects the microphone and loudspeaker ports.

The XPD probe can be used for DPOAE, TEOAE and AABR testing. Add optional Dual* channel for AABR screening

*Additional charges apply

Consumables

The Otodynamics XPD probe is designed to make daily maintenance and cleaning simple and quick. The new TIP HOLDER is fitted over the probe body and locates precisely with the sound ports when the TIP HOLDER tabs are clicked securely on the probe body.

Add: Clinical TEOAE

Increase the depth and power of your clinical investigations by adding our gold-standard 1-6kHz TEOAE analysis with half octave analysis between 800-6kHz and waveform display

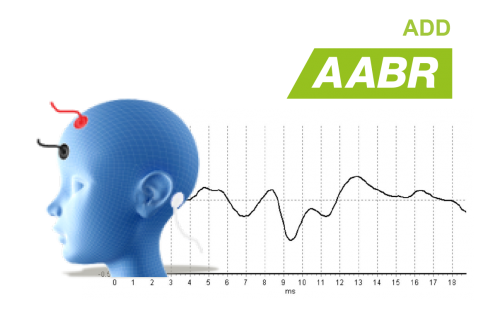

Add: AABR

You can add AABR infant screening to the Otoport Pro Advanced Clinical model, offering two AABR protocols customizable between 35 - 45dBnHL. Extend to 60dBnHL for non-screening training/research use. Display the emerging ABR waveform test in real time and detailed examination post test.

Add: Scanning

Add the built in QR/Barcode reader to your Otoport Pro and effortlessly scan patient detail for easy data input*. Search and find instantly, paitent test records stored on the Otoport Pro. Setup user scan login access.

To upgrade Otoport Pro or to tailor the test mode for specific applications, simply scan a different QR code license**. With the Otoport Pro you are not limited to one installation.

Watch video...

* subject to advance information of facility's QR specification
** charges apply

OtoLink PC Data Management Suite

Download test results wirelessly or via USB from the Otoport or when docked in the docking station. Test details can be quickly reviewed, printed and archived. Printing reports directly to a PDF file is available. Data can be exported, for example, to OZ, HiTrack, GDT, Noah** or as CSV file. Patient Work Lists can be uploaded to the Otoport, assisting with managing workloads in busy environments. Otolink also provides access to firmware and application updates from Otodynamics via the internet. Compatible with Windows 11 and 10.

Included: 2 Year Warranty

Otodynamics is recognised globally by its customers as the industry standardand renowned for QUALITY, RELIABILITY and PERFORMANCE. With a 2 year warranty as standard, when you buy from Otodynamics you can be confident of a Gold standard product, trusted results and first class support. Otodynamics has been providing audiology equipment for over 35 years through a growing global network of trusted and approved partners providing you with local expert advice and knowledge. Additional warranty is available, ask for details

Specification Table

SPEC	DPOAE	TEOAE [optional]	AABR [optional]
TEST CONFIGURABILITY	2 Protocols, 11 Parameters	2 Protocols, 6 Parameters	2 Protocols, 2 Parameters
FREQUENCY RANGE	1 to 8 kHz	1, 1.5, 2, 3, 4, 6 kHz	-
FREQUENCY RESOLUTION	Up to 4 pts/octave	Half octave bandwidth	-
STIMULUS LEVELS	60/50 to 70/70 (6 Presets)	60 to 90 dBSPLpe (Δ1dB)	30 to 45 (Δ1dB) [up to *60 dBnHL for training]
PASS CRITERIA	3 to 6 frequencies	6dB, configurable up to 14dB (Δ1dB) per freq.	FSP with neonatal waveform template
CPT CODE	92587, 92588	92558	92650
