The Otoport Pro AABR has been expertly designed to be flexible, simple, easy-to-use, and fast, while meeting all your screening needs from newborn screening. Screeners are aided to identify problems by on-screen messages, to improve their techniques, and thereby improve overall performance of the program. Add AABR to any Otoport PRO.
Upgrade later with a QR license activation. Each test type delivers reliability and performance with ultra fast, accurate and clear results

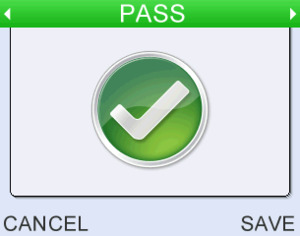

Achieve result with an AABR average pass in 80 seconds

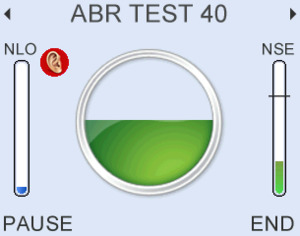

See test progress every step of the way, automated alerts are displayed if changes in stimulus levels, impedance, or excess noise that may effect the test

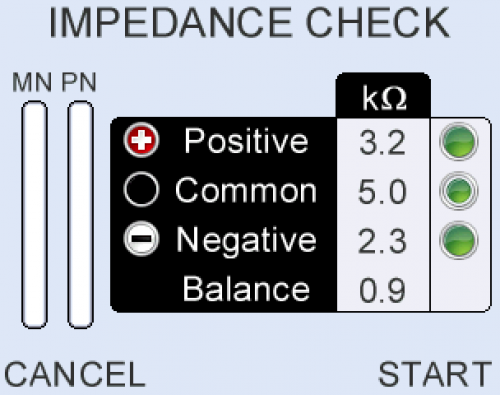

For AABRs, superior pre-test environment checks provides separate powerline & infant noise indicators and quickly identify if a specific electrode has high impedance.
The Otoport Pro Screener is fast, easy and clear. With thequick start feature, in 2 key presses, achieve a clear response.

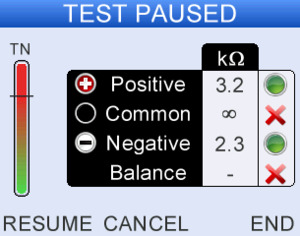

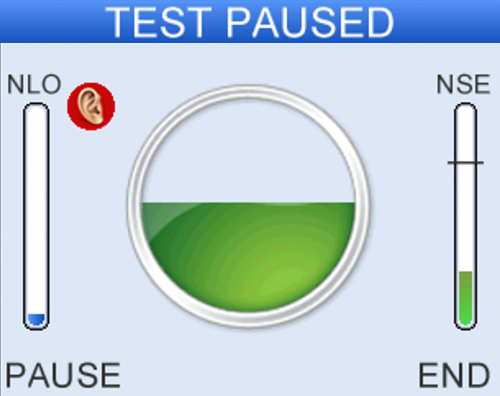

Pause and resume testing at any time to address any issue impacting a test, such as noise, probe or electrode fitment.

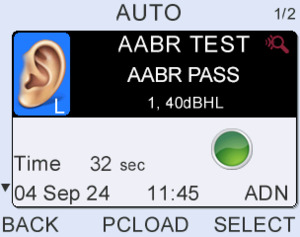

Store up to 4000* tests listed in chronological order with on-screen test result summary table.

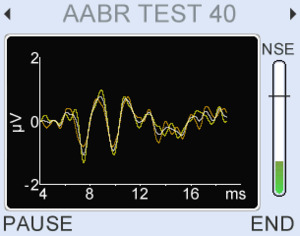

Real time ABR waveform view available when AABR on the Otoport Pro Clinical and Advanced Clinical. Advanced Clinical Extendable FSP for AABR waveform capture

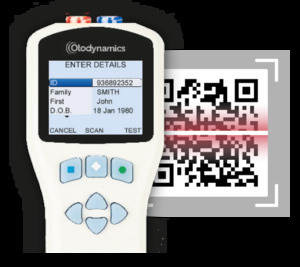

Effortlessly enter patient details via QR code scanning*, worklist or enter manually
Choice in Stim Delivery
Choice in Stim Delivery
Otodynamics right angled probe can be used for both OAE & AABR testing. Its unique design makes it easy to achieve a good probe fit. Ear cups can also be used with the Otoport Pro. However, using the probe inserted into the ear for AABR can reduce consumable costs. Otoport Pro can perform single or dual probe testing.
Otoport Pro Design
Otoport Pro Design
With the Otoport Pro you get multiple days of use between battery charges. Its robust design, large onboard searchable patient database and detailed response capture, means Otoport Pro can meet all your screening and or clinical program management needs.
Included: Wireless Connection
Included: Wireless Connection
Transfer data wirelessly to the PC Otolink suite software or print wirelessly to the Otodynamics Mini printer.
“The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Otodynamics Ltd. is under license. Other trademarks and trade names are those of their respective owners.”
Probe XPD Connection
Probe XPD Connection
The XPD probe is designed for the Otodynamics Pro series with easy push pull probe connection and quick maintenance. THe XPD probe body benefits from the inclusion of an internal filter that fully protects the microphone and loudspeaker ports.
The XPD probe can be used for DPOAE, TEOAE and AABR testing. Add optional Dual* channel for AABR screening
*Additional charges apply
Consumables
Consumables
The Otodynamics XPD probe is designed to make daily maintenance and cleaning simple and quick. The new TIP HOLDER is fitted over the probe body and locates precisely with the sound ports when the TIP HOLDER tabs are clicked securely on the probe body.
Add: Scanning
Add: Scanning
Add the built in QR/Barcode reader to your Otoport Pro and effortlessly scan patient detail for easy data input*. Search and find instantly, paitent test records stored on the Otoport Pro. Setup user scan login access.
To upgrade Otoport Pro or to tailor the test mode for specific applications, simply scan a different QR code license**. With the Otoport Pro you are not limited to one installation.
* subject to advance information of facility's QR specification
** charges apply
OtoLink PC Data Management Suite
OtoLink PC Data Management Suite
Download test results wirelessly or via USB from the Otoport or when docked in the docking station. Test details can be quickly reviewed, printed and archived. Printing reports directly to a PDF file is available. Data can be exported, for example, to OZ, HiTrack, GDT, Noah** or as CSV file. Patient Work Lists can be uploaded to the Otoport, assisting with managing workloads in busy environments. Otolink also provides access to firmware and application updates from Otodynamics via the internet. Compatible with Windows 11 and 10.
Included: 2 Year Warranty
Included: 2 Year Warranty
Otodynamics is recognised globally by its customers as the industry standardand renowned for QUALITY, RELIABILITY and PERFORMANCE. With a 2 year warranty as standard, when you buy from Otodynamics you can be confident of a Gold standard product, trusted results and first class support. Otodynamics has been providing audiology equipment for over 35 years through a growing global network of trusted and approved partners providing you with local expert advice and knowledge. Additional warranty is available, ask for details
Specification Table
SPEC | SCREENER | with CLINICAL | with Advanced Clinical |
TEST CONFIGURABILITY | 1 Protocol, 2 Parameters | 2 Protocols, 2 Parameters | 2 Protocol, 9 Parameters |
STIMULUS LEVELS (dBnHL) | 30 to 45 (Δ1dB) | 30 to 45 (Δ1dB) [60 dBnHL for training] | 30 to 45 (Δ1dB) [60 dBnHL for training] |
STIMULUS TYPE | Chirp | Chirp | Chirp and Click |
PASS CRITERIA | FSP with neonatal waveform template | FSP with neonatal waveform template | Configurable FSP with neonatal waveform template |
CPT CODE | 92650 | 92650 | 92650 |
