Otoport TE Screener

For universal newborn hearing screening programs

FULLY CUSTOMIZABLE
3 Protocols, 16 Parameters

QUALITY CONTROL
Dedicated QA Area

FREQUENCY RANGE
1 to 6 kHz bands, ½ oct

Download brochure

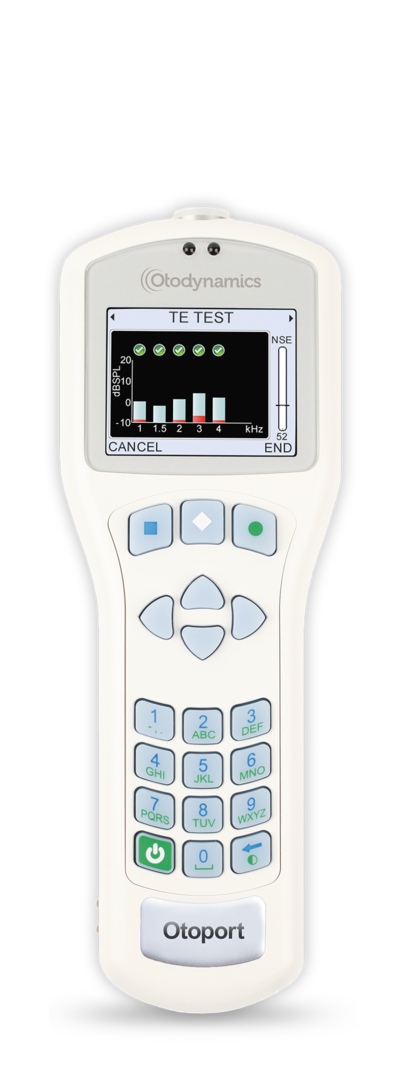

Otoport TE Screener

Ideal universal newborn hearing screening programs

For ultimate test documentation, the Otoport TE Screener is the ideal for intergating into universal hearing screening programmes of any size. Providing TEOAE Quickscreen with customisable protocols, configurable individual pass criteria, dedicated programme QA area and QA history storage. Plus, searchable 5000 test and patient database with extensive biographic data fields.

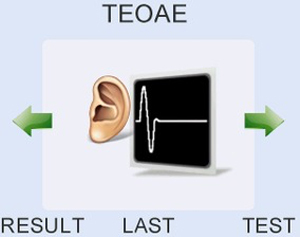

Gold standard TEOAE Quickscreen 4 customisable screening protocols with a range of configurable fields Gold standard TEOAE Quickscreen 4 customisable screening protocols with a range of configurable fields

In-ear calibration ensuring accurate results In-ear calibration ensuring accurate results

High resolution spectrum display up to 6kHz High resolution spectrum display up to 6kHz

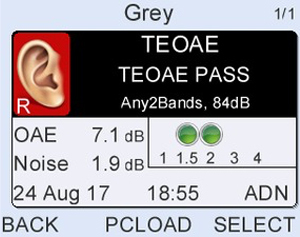

Fast and clear Pass/Refer result Fast and clear Pass/Refer result

Configurable individual pass criteria Configurable individual pass criteria

Extensive 5000 test 1000 name record database, searchable by name, ID and date, tester, DoB Extensive 5000 test 1000 name record database, searchable by name, ID and date, tester, DoB

Enter full extensive patient demographic data as needed
Enter full extensive patient demographic data as needed

Programable worklist and downloadable secure database, login access if required Programable worklist and downloadable secure database, login access if required

Dedicated QA test area On board Probe, cavity, occlusion and real ear test QA facility with Probe ID tracking & history view Dedicated QA test area On board Probe, cavity, occlusion and real ear test QA facility with Probe ID tracking & history view

Long battery life - up to 250 test cycles or one full working week Long battery life - up to 250 test cycles or one full working week

Create multiple user logins with password protection with Admin control if required Create multiple user logins with password protection with Admin control if required

Extensive protocol control with login and administrator functions Extensive protocol control with login and administrator functions

EZSCREEN:Included

EZSCREEN:Included

EZSCREEN:Included

USB transfer to PC for Ez-screen software analysis and tracked integration into Ez-screen database, exporting to OZ, Hitrack, ASCII, XML, archive. Compatible with Windows 10, 8 and 7

OTOLINK SUITE: Included

OTOLINK SUITE: Included

OTOLINK SUITE: Included

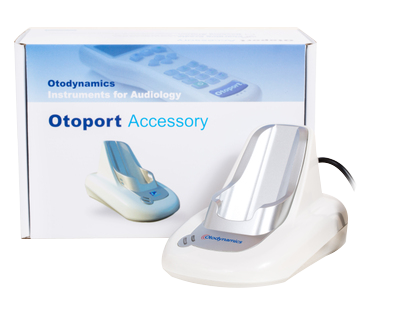

Manage your data easily and efficiently with the Otolink PC patient data management suite. Download test results wirelessly* or via USB from the Otoport or when docked in the docking station**. Test details can be quickly reviewed, printed and archived. Printing reports directly to PDF file is available. Data can be exported, for example, to Oz, Hi Track, GDT, Noah*** or as CSV file. Patient work lists can be uploaded to the Otoport, assisting with managing workloads in busy environments. Otolink also provides access to firmware and application updates from Otodynamics via the internet.
Compatible with Windows 10, 8 and 7.

With wireless connection option ** With docking station option *** With Noah option

OTOPORT DESIGN

OTOPORT DESIGN

OTOPORT DESIGN

  • Light weight and portable with easy-to-use keypad
  • Automated self-test system when powering on Otoport
  • Intuitive test progress graphic displaying signal to noise progress
  • Long battery life - up to 250 test cycles or one full working week
  • On screen notification of poor probe fit, high noise level and ringing stimulus
  • Each test is saved with the actual physiological response

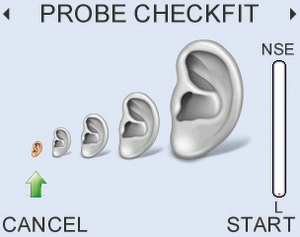

  • Comprehensive probe fit and noise level indicators
  • On board Probe test facility and Probe ID tracking

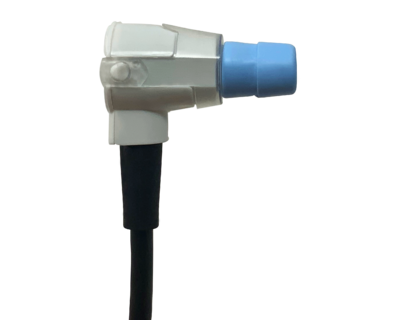

EASY FIT PROBE DESIGN

EASY FIT PROBE DESIGN

EASY FIT PROBE DESIGN

Otodynamics was the first with a right angled probe, designed to be small, light weight and easy to fit to help achieve a good probe fit. Find out about longer probe life

2 YEAR WARRANTY: Included

2 YEAR WARRANTY: Included

2 YEAR WARRANTY: Included

2 year instrument warranty is provided with all Otoports.  Additional warranty is available if required ask for details

Testimonials

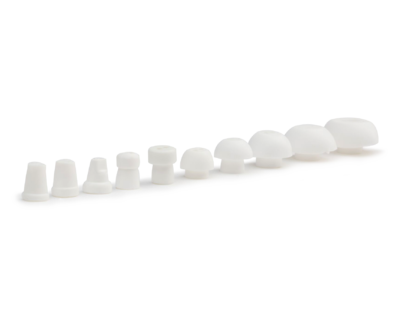

Accessories Included

Specification Table

Spec TEOAE
TEST CONFIGURABILITY 1 Protocol, 7 Parameters
FREQ. RANGE (kHz) 1, 1.5, 2, 3, 4kHz
FREQ. RESOLUTION 1/2 Octave bandwidth
STIMULUS LEVELS (dBSPLpe) 60 to 84 (Δ1dB)
PASS CRITERIA 2, 3, or 4 1/2 octave, wide or narrow bands to pass
PASS SNR 6dB (Fixed)
CPT CODES 92558

Additional Options
