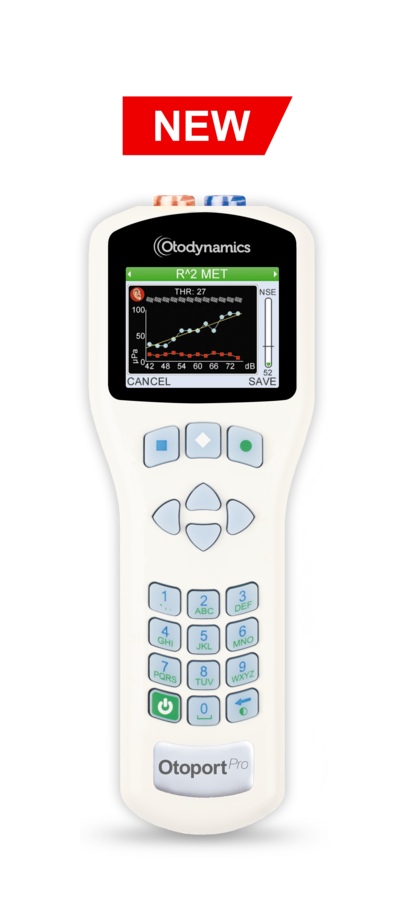

Otoport Pro ADVANCE CLINICAL

Benefit from the full range and power of the Otoport Pro with the Advanced Clinical. Boasting 16 fully customizable protocols, the Otoport Pro Advanced Clinical model will perform in the most demanding of clinics. Incorporating all the functions of the Otoport Pro Screener and Clinical models, the Advanced clinical has three additional investigational OAE functions. DP ZOOM explores DP-gram features at up to 100 points per octave resolution. Stimulus levels are configurable in 1dB steps. DP GROWTH provides multi stimulus level DPOAE measurements at any frequency 1-8kHz. MULTI TEST function linking up to 4 loopable test protocols allowing you to build a sequence of different DP and/or TE tests.

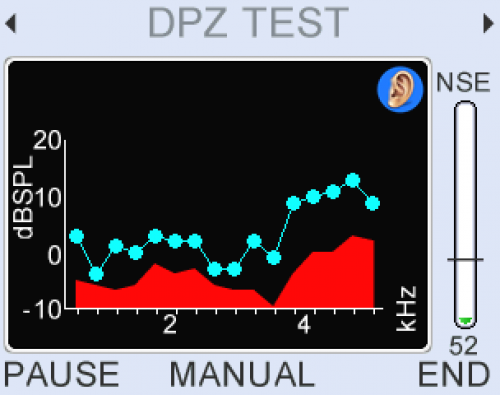

DP zoom focuses on a specific range of frequencies in high resolution (up to 16 pts/oct) to explore details.

DP growth I/O function analysis, dB/dB and scissor modes. Intelligent or manual test progress management for fast testing.

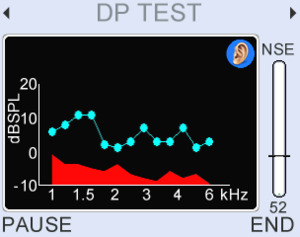

High quality 12 frequency bar DPgrams or higher resolution with normative range markers from 1-8kHz up to 4pts/octave and or higher resolution.

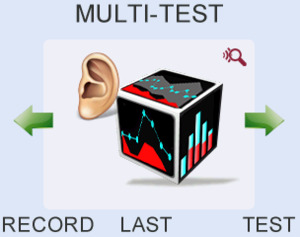

Multi Test macro (x6 protocals) function- build a protocol giving a sequence of DP and/or TE tests.

Six1-8kHz customizable protocols with Half octave line graph, histogram and frequency circle display.

Increase the depth and power of your clinical investigations by adding our gold-standard 1-6kHz TEOAE analysis with half octave analysis between 0.8-6kHz and waveform display.

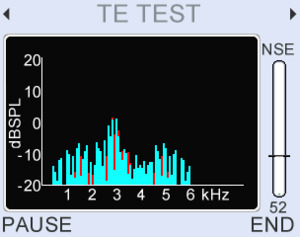

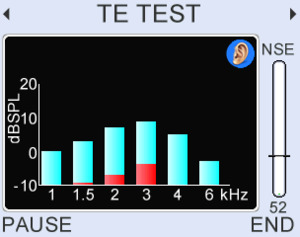

Comprehensive TEOAE analysis, high resolution spectrum

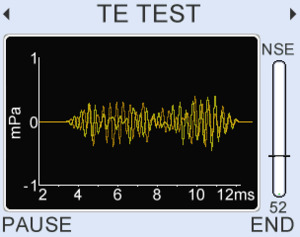

View TEOAE waveform.

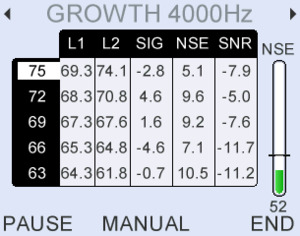

Detailed numerical data available with each test result. Stimulus, response noise levels plus signal to noise ration SNR.

Searchable 4000 tests storage listed in chronological order with on-screen test result summary table. Detailed demographic data.

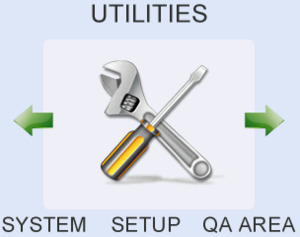

Extensive protocol control with login and administrator functions.

Comprehensive automatic or manual test setup of parameter, protocol and individual clinical pass criteria.

DP ZOOM TEST

Allows you to investigate a specific range of frequencies from 0.5 to 8kHz in high resolution of up to 100 pts/oct. Explore details of DP-gram features such as notches to establish their true extent and depth. Export data for analysis and research.

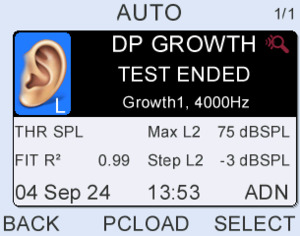

DP GROWTH TEST

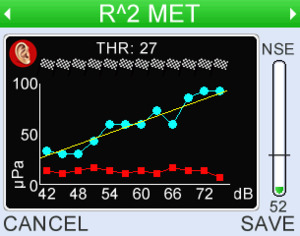

Select any frequency and see how DPOAE intensity grows with stimulus level. Stimuli are optimized by the ‘scissor’ formula. Plot either dB/dB or uPa/dB growth. Automatic regression analysis provides slope and DPOAE threshold data for sufficiently linear uPa growth results

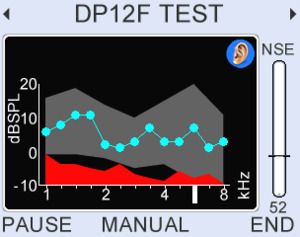

DP 12 FREQUENCY TEST

Two customizable 1-8kHz DPgram protocols with ¼ octave resolution and 6 selectable stimulus formats. Smart frequency sweep management optimizes test time and settable normative range markers assist interpretation.

Unique Distraction Animation

When conducting challenging pediatric OAE assessments, the Otoport Pro has 6 visual distraction animations that helps to keep the child quiet and engaged. The child is encouraged to remain quiet as they watch the onscreen cartoon gradually filling with color. If noise is detected during the test, the colors quickly fade and return when the child settles creating positive reinforcement.

Watch video...

Included: CLINICAL Application

The CLINICAL application brings the unique insight of precision OAE recording and analysis to your clinical investigations, all with detailed response capture. Four customizable DP protocols, including 1-8kHz 12 frequency DP-grams, with optional two customizable clinical TEOAEs protocal.

Included: SCREENER Application

FAST | EASY | CLEAR
The Otoport Pro SCREENER application is included in this model, providing an all-rounder screener with enabled test type preconfigured for screener meeting a wide range of needs. From newborn screening through to pediatric assessment, based on 35 years experience. The Otoport Screener is ready to go, intuitive,and fast, it's a pleasure to use.

Otoport Pro Design

With the Otoport Pro you get multiple days of use between battery charges. Its robust design, large onboard searchable patient database and detailed response capture, means Otoport Pro can meet all your screening and or clinical program management needs.

Included: Wireless Connection

Transfer data wirelessly to the PC Otolink suite software or print wirelessly to the Otodynamics Mini printer.

Probe XPD Connection

The XPD probe is designed for the Otodynamics Pro series with easy push pull probe connection and quick maintenance. THe XPD probe body benefits from the inclusion of an internal filter that fully protects the microphone and loudspeaker ports.

The XPD probe can be used for DPOAE, TEOAE and AABR testing. Add optional Dual* channel for AABR screening

*Additional charges apply

Consumables

The Otodynamics XPD probe is designed to make daily maintenance and cleaning simple and quick. The new TIP HOLDER is fitted over the probe body and locates precisely with the sound ports when the TIP HOLDER tabs are clicked securely on the probe body.

Add: AABR

You can add AABR infant screening to the Otoport Pro Advanced Clinical model, offering two AABR protocols customizable between 35 - 45dBnHL. Extend to 60dBnHL for non-screening training/research use. Display the emerging ABR waveform test in real time and detailed examination post test.

Add: Scanning

Add the built in QR/Barcode reader to your Otoport Pro and effortlessly scan patient detail for easy data input*. Search and find instantly, paitent test records stored on the Otoport Pro. Setup user scan login access.

To upgrade Otoport Pro or to tailor the test mode for specific applications, simply scan a different QR code license**. With the Otoport Pro you are not limited to one installation.

Watch video...

* subject to advance information of facility's QR specification
** charges apply

OtoLink PC Data Management Suite

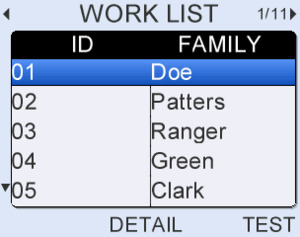

Download test results wirelessly or via USB from the Otoport or when docked in the docking station. Test details can be quickly reviewed, printed and archived. Printing reports directly to a PDF file is available. Data can be exported, for example, to OZ, HiTrack, GDT, Noah** or as CSV file. Patient Work Lists can be uploaded to the Otoport, assisting with managing workloads in busy environments. Otolink also provides access to firmware and application updates from Otodynamics via the internet. Compatible with Windows 11 and 10.

Included: 2 Year Warranty

Otodynamics is recognised globally by its customers as the industry standardand renowned for QUALITY, RELIABILITY and PERFORMANCE. With a 2 year warranty as standard, when you buy from Otodynamics you can be confident of a Gold standard product, trusted results and first class support. Otodynamics has been providing audiology equipment for over 35 years through a growing global network of trusted and approved partners providing you with local expert advice and knowledge. Additional warranty is available, ask for details

Specification Table

SPEC	DPOAE	TEOAE	AABR [optional]
TEST CONFIGURABILITY	8 Protocols, 16 Parameters	2 Protocols, 8 Parameters	2 Protocols, 9 Parameters
FREQUENCY RANGE	Up to 8 kHz, 13 frequencies	1, 1.5, 2, 3, 4, 6 kHz	-
FREQUENCY RESOLUTION	Up to 100 pts/octave with DP Zoom	Half octave bandwidth	-
STIMULUS LEVELS	60/50 to 70/70 (6 Presets) Custom 40 to 75 (Δ1dB)	60 to 90 dBSPLpe (Δ1dB)	30 to 45 (Δ1dB) [up to *60 dBnHL for training]
PASS CRITERIA	1 to 6 frequencies	1 to 5 half octave bands	Spectrum1 to 5 half octave bands
CPT CODE	92587, 92588	92558	92650
